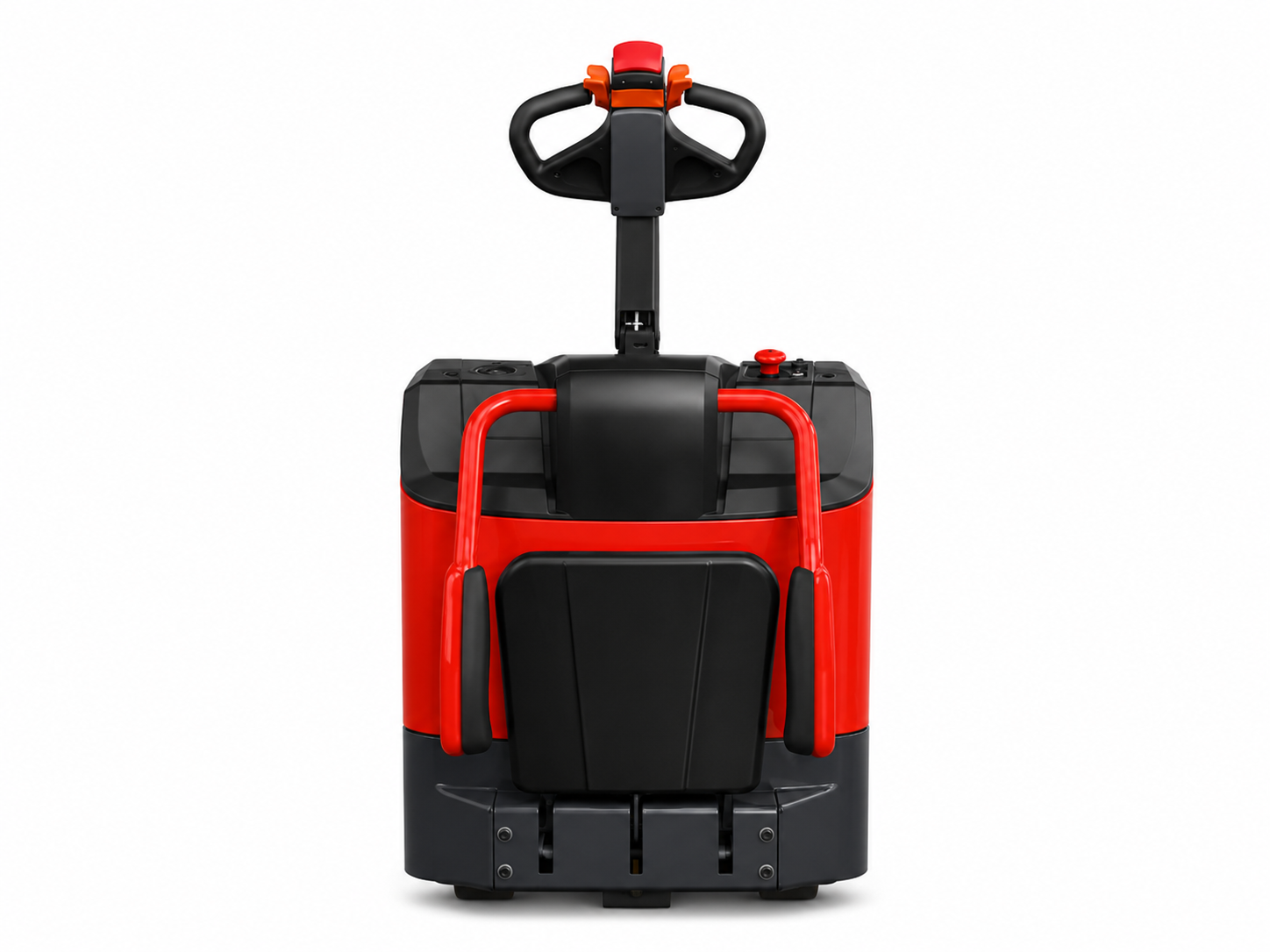

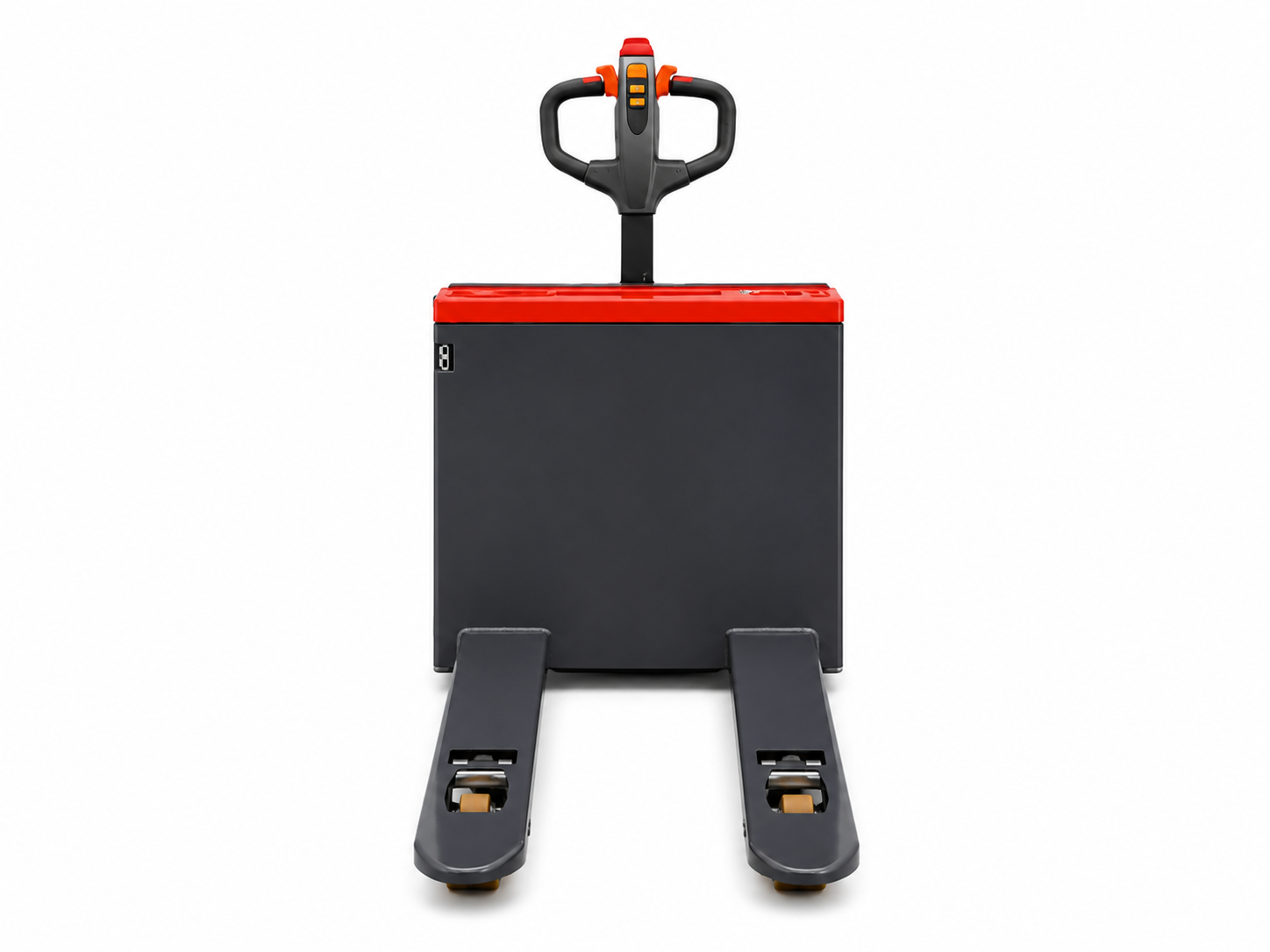

CBD Stand-On Fully Electric Pallet Truck
A compact CBD stand-on electric pallet truck series with 2,000 kg and 3,000 kg rated-capacity options.
Request a Quote
Tell us your required capacity, lift height, working environment, quantity and destination. YanX will review your requirements with the manufacturing team and prepare a suitable quotation.
Confirm the Right Configuration
Tell us your required load, load center, maximum lift height, attachments, operating hours and battery preference. We will confirm the applicable capacity and configuration information for the selected model before quoting. Final specifications and warranty terms are set out in the quotation and contract.
Technical Specifications
| Models | CBD20 / CBD30 |
|---|---|
| Rated Capacity | CBD20: 2,000 kg; CBD30: 3,000 kg |
| Lift Height | 200 mm |
| Load Center | 600 mm |
| Fork Dimensions | 1,200 × 170 × 60 mm |
| Fork Outside Width | 685 / 550 mm |
| Fork Inside Width | 345 / 210 mm |
| Ground Clearance | 85 / 25 mm |
| Tyre Material | Polyurethane (PU) |
| Control | Tiller handle |
| Speed Regulation | Stepless speed regulation |
| Tiller Handle Height | 1,490 mm |
| Operator Platform Length | 410 mm |
| Minimum Turning Radius | 1,250 mm |
| Full-Load Travel Speed | 5 km/h |
| Maximum Gradeability, Laden | 10° |
| Battery | 24 V / 120 or 180 Ah |
| Drive Motor | CBD20: 1.2 kW; CBD30: 1.5 kW |
| Lift Motor | CBD20: 2.2 kW; CBD30: 3 kW |
| Tyre Size, Front / Rear | 250 / 80 mm |
| Overall Dimensions | 1,900 × 860 × 1,490 mm |
| Service Weight | 580 / 800 kg, depending on configuration |
| Reference Working Time | 4–6 h |
Product Overview
The CBD20 and CBD30 form a stand-on fully electric pallet truck series for horizontal pallet transport in warehouses, factories and loading areas. The range covers rated capacities of 2,000 kg and 3,000 kg with a 200 mm lift height.
The stand-on platform, 5 km/h full-load travel speed and compact 1,250 mm turning radius support frequent pallet movement over short and medium distances. Final fork width, battery and service-weight configuration should be confirmed according to the customer's pallet type and operating requirements.
