CDD Fully Electric Pallet Rotator
A 1.5-ton fully electric pallet rotator with 0–90° hydraulic tilting and 0–180° hydraulic rotation.
Request a Quote
Tell us your required capacity, lift height, working environment, quantity and destination. YanX will review your requirements with the manufacturing team and prepare a suitable quotation.
Confirm the Right Configuration
Tell us your required load, load center, maximum lift height, attachments, operating hours and battery preference. We will confirm the applicable capacity and configuration information for the selected model before quoting. Final specifications and warranty terms are set out in the quotation and contract.
Technical Specifications
| Model | CDD1516 |
|---|---|
| Rated Capacity | 1,500 kg |
| Lift Height | 1,400 mm |
| Load Center | 500 mm |
| Fork Dimensions | 1,150 × 180 × 70 mm |
| Fork Outside Width | 550 / 685 mm |
| Fork Inside Width | 210 / 345 mm |
| Minimum Ground Clearance | 85 mm |
| Tyre Material | Polyurethane (PU) |
| Control | Tiller handle |
| Speed Regulation | Stepless speed regulation |
| Tiller Handle Height | 1,490 mm |
| Operator Platform Length | 410 mm |
| Minimum Turning Radius | 1,250 mm |
| Full-Load Travel Speed | 5 km/h |
| Maximum Gradeability, Laden | 10° |
| Battery | 24 V / 180 or 210 Ah |
| Drive Motor | 1.5 kW |
| Lift Motor | 3 kW |
| Tyre Size, Front / Rear | 250 / 80 mm |
| Overall Dimensions | 2,350 × 860 × 1,600 mm |
| Service Weight | 1,300 kg |
| Reference Working Time | 6 h |
| Hydraulic Tilting Angle | 0–90° |
| Hydraulic Rotation Angle | 0–180° |
| Charger | 24 V / 30 A |
Product Overview

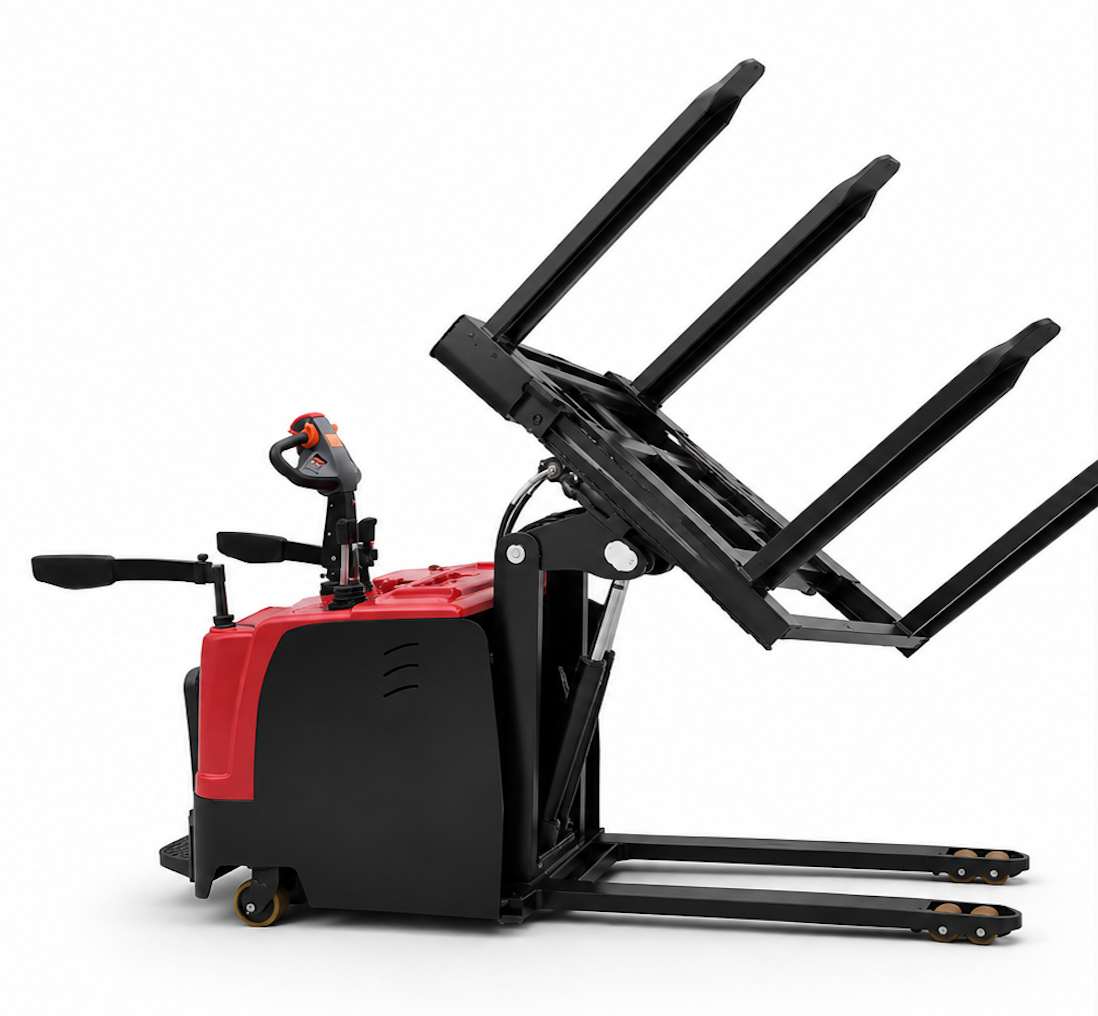

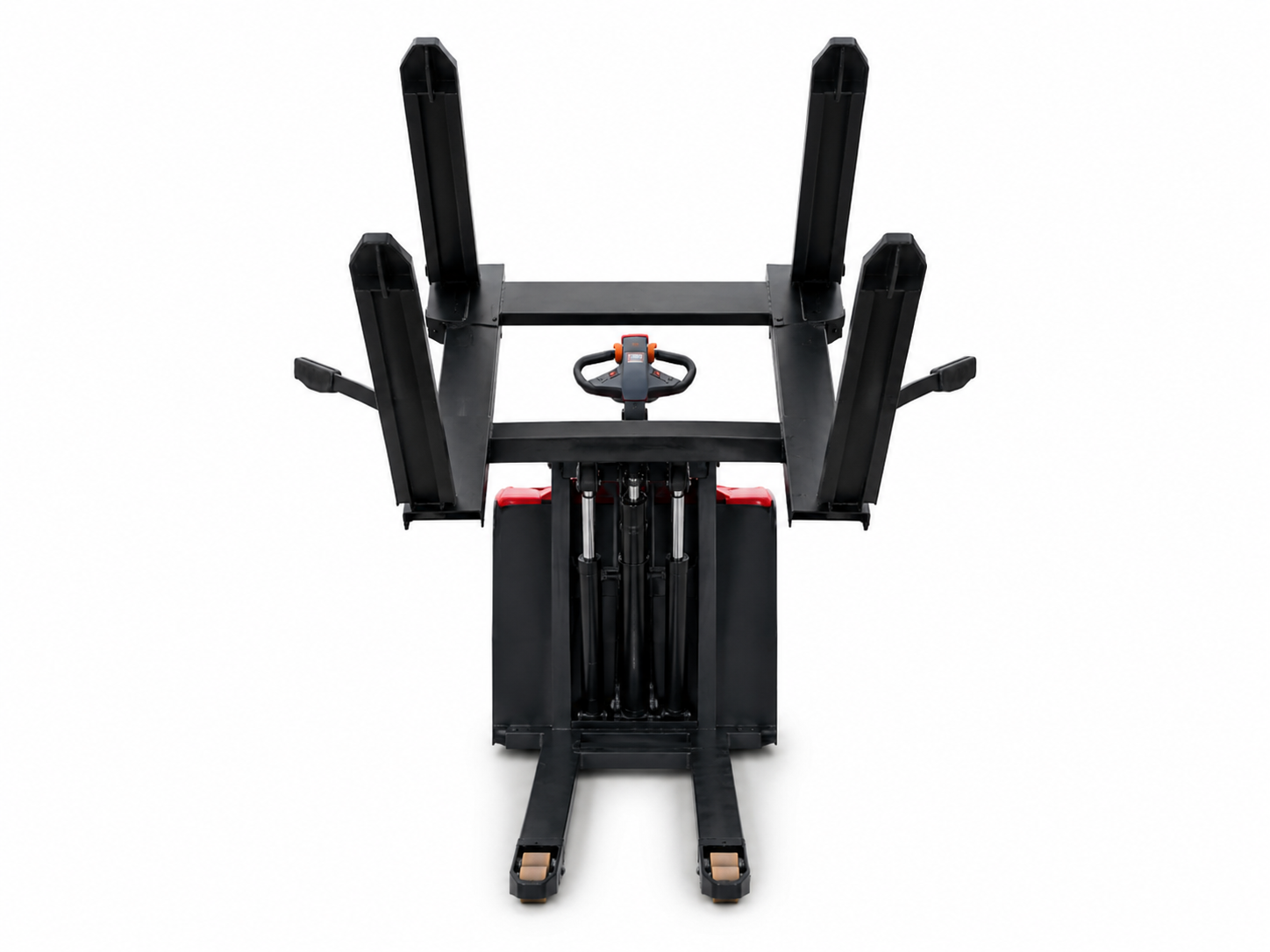

The CDD1516 is a fully electric pallet rotator designed to lift, transport, tilt and rotate palletized loads. It provides a rated capacity of 1,500 kg, a 1,400 mm lift height, hydraulic tilting from 0° to 90° and hydraulic rotation from 0° to 180°.
The compact stand-on design, 1,250 mm turning radius and fully electric travel and lifting functions make it suitable for warehouses, production facilities and material-handling processes that require controlled load repositioning. Final fork width, battery and load compatibility should be confirmed according to the customer's application.
