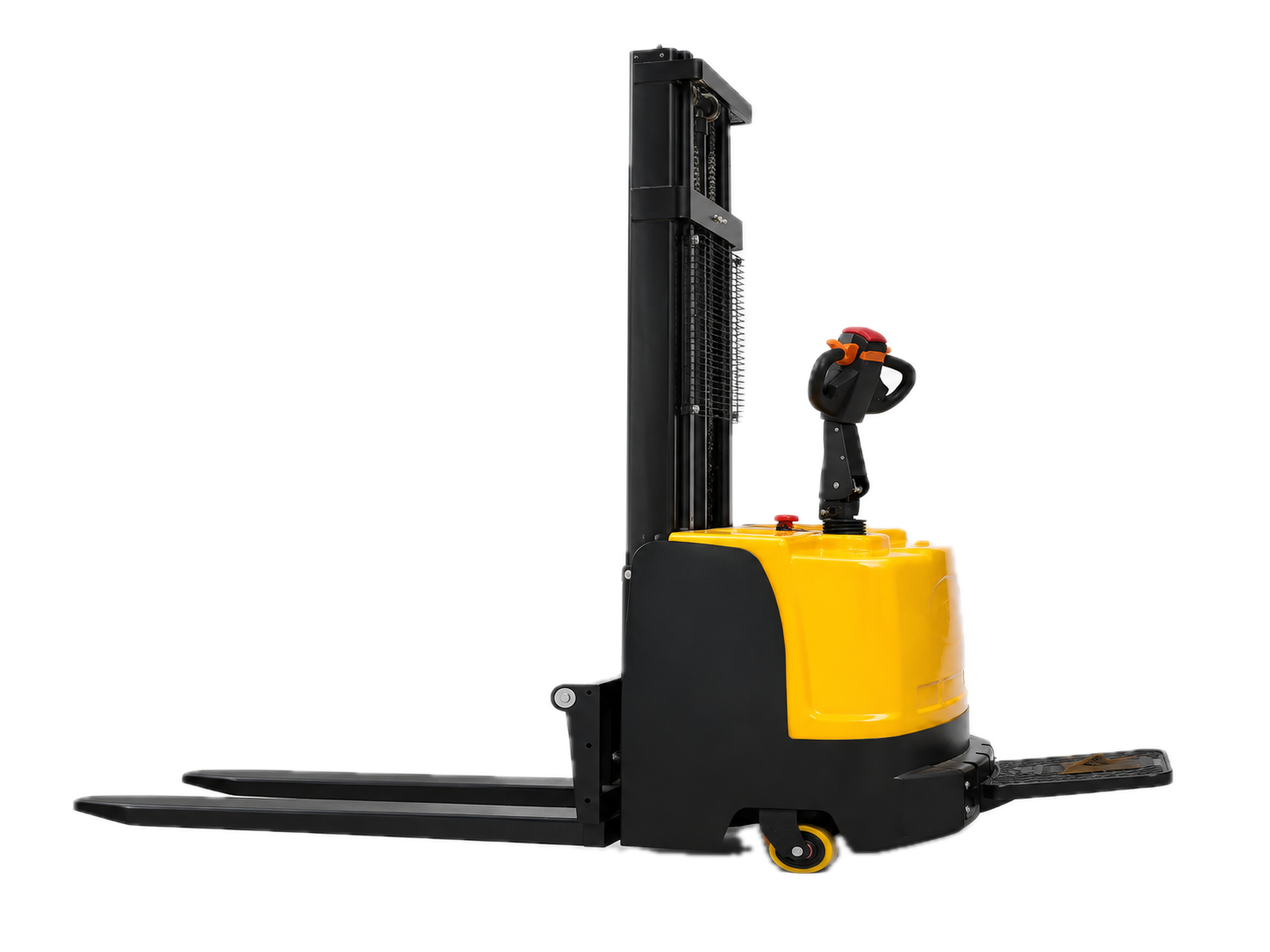

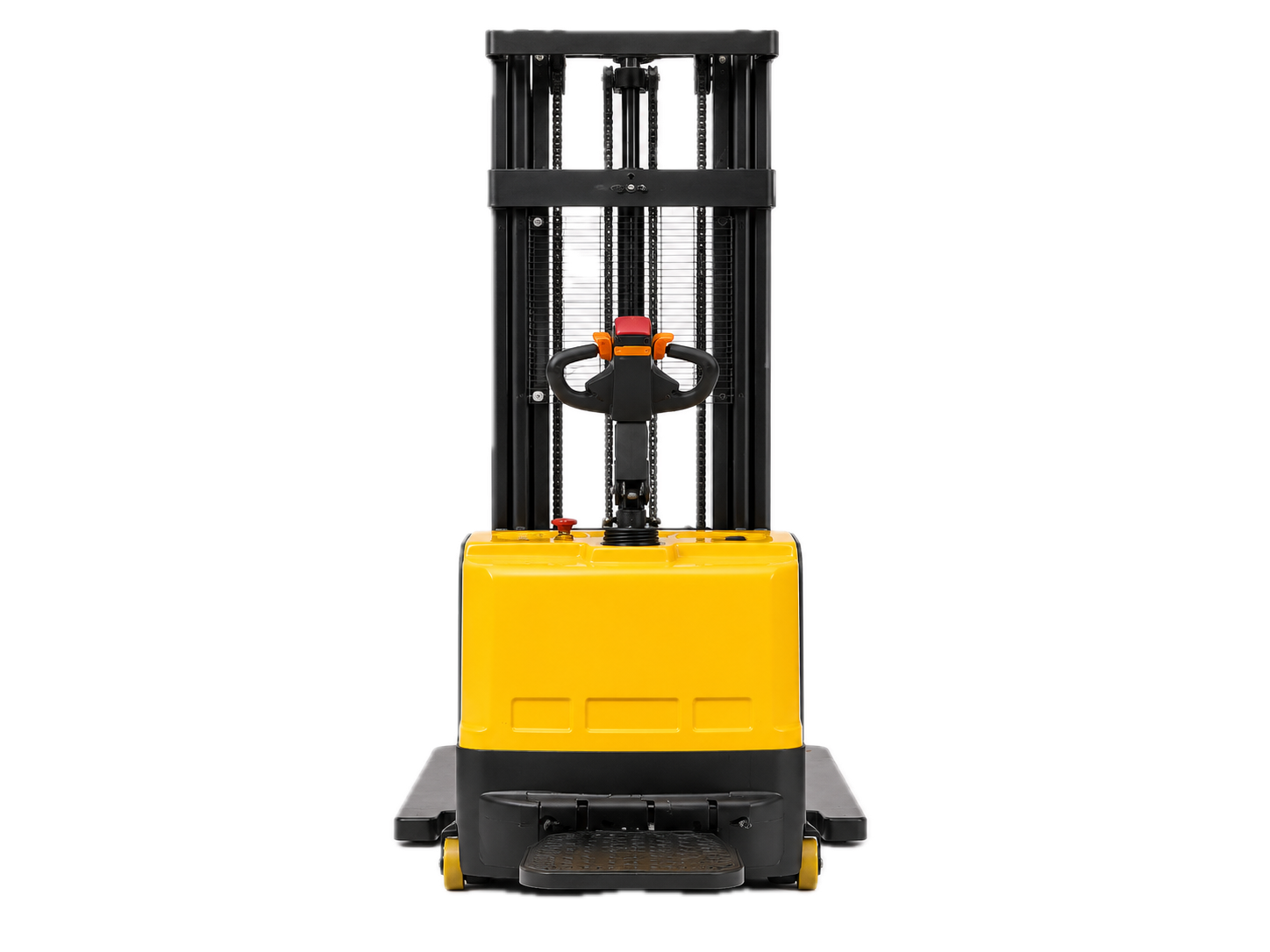

CDDA Compact Fully Electric Stacker
A lightweight and compact fully electric stacker series with 1,000 kg and 1,500 kg capacity options and a 3,000 mm standard lift height.
Request a Quote
Tell us your required capacity, lift height, working environment, quantity and destination. YanX will review your requirements with the manufacturing team and prepare a suitable quotation.
Confirm the Right Configuration
Tell us your required load, load center, maximum lift height, attachments, operating hours and battery preference. We will confirm the applicable capacity and configuration information for the selected model before quoting. Final specifications and warranty terms are set out in the quotation and contract.
Technical Specifications
| Models | CDA1030 / CDA1530 |
|---|---|
| Rated Capacity | CDA1030: 1,000 kg; CDA1530: 1,500 kg |
| Standard Lift Height | 3,000 mm |
| Load Center | 500 mm |
| Fork Dimensions | 1,150 × 170 × 60 mm |
| Minimum Ground Clearance | 30 mm |
| Operator Platform Length | 410 mm |
| Tiller Handle Height | 1,490 mm |
| Fork Outside Width | 685 mm |
| Fork Inside Width | 345 mm |
| Tyre Material | Polyurethane (PU) |
| Control | Tiller handle |
| Speed Regulation | Stepless speed regulation |
| Minimum Turning Radius | 1,150 mm |
| Full-Load Travel Speed | 4 km/h |
| Maximum Gradeability | 3° / 5° |
| Battery | 24 V / 100 or 120 Ah |
| Drive Motor | 1.2 kW |
| Lift Motor | 2.2 kW |
| Tyre Size | 210 / 80 mm |
| Overall Dimensions | 1,880 × 860 × 2,100 mm |
| Service Weight | CDA1030: 580 kg; CDA1530: 600 kg |
| Reference Working Time | 3 h |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 mm |
| Corresponding Lowered Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 mm |
Product Overview
The CDA1030 and CDA1530 form a compact fully electric stacker series for pallet stacking and short-distance material movement in warehouses, workshops and distribution facilities. The range covers rated capacities of 1,000 kg and 1,500 kg with a 3,000 mm standard lift height.
The 860 mm overall width and 1,150 mm turning radius support operation in space-constrained areas. Final battery, mast and pallet compatibility should be confirmed according to the customer's operating requirements.
