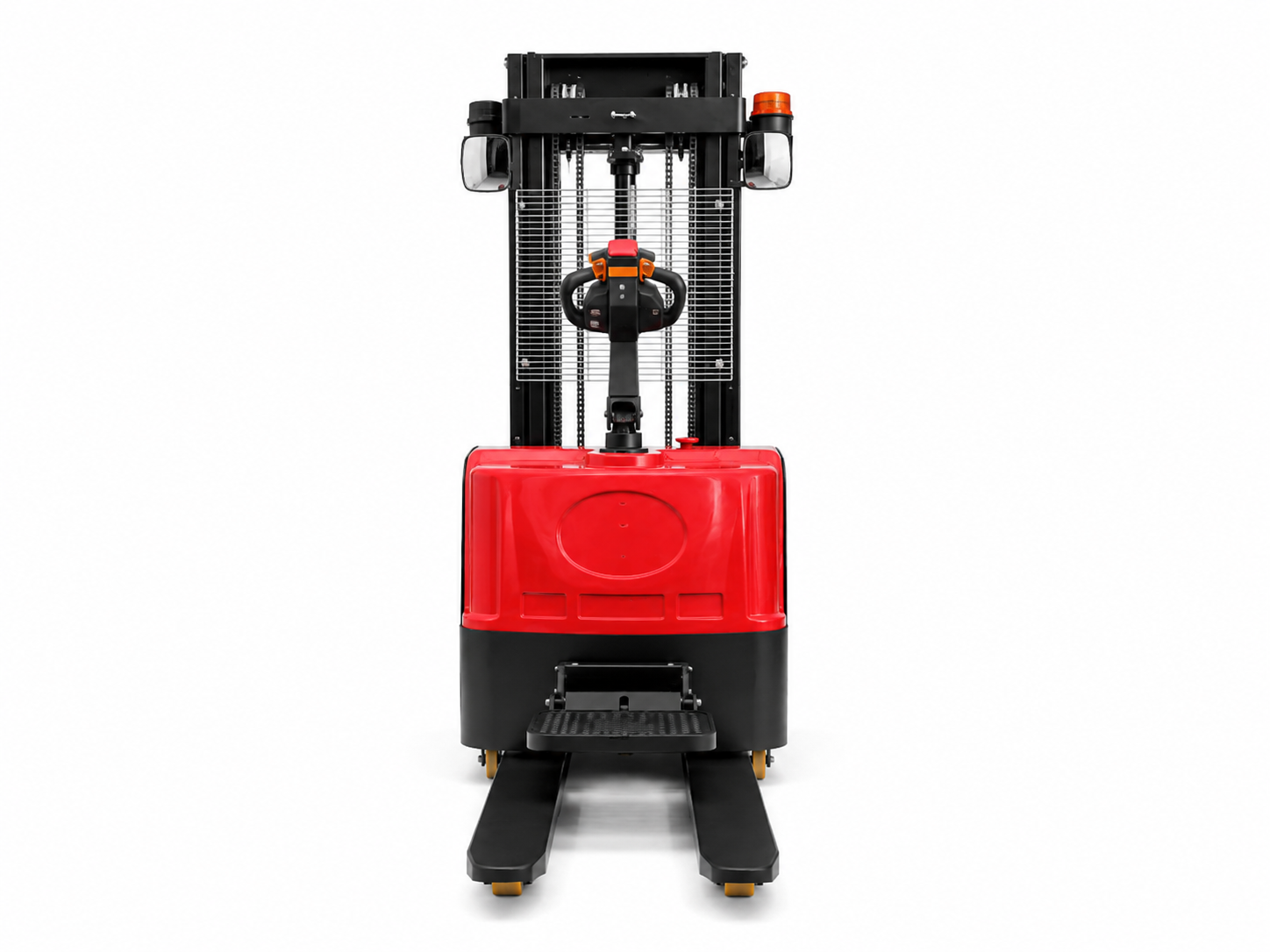

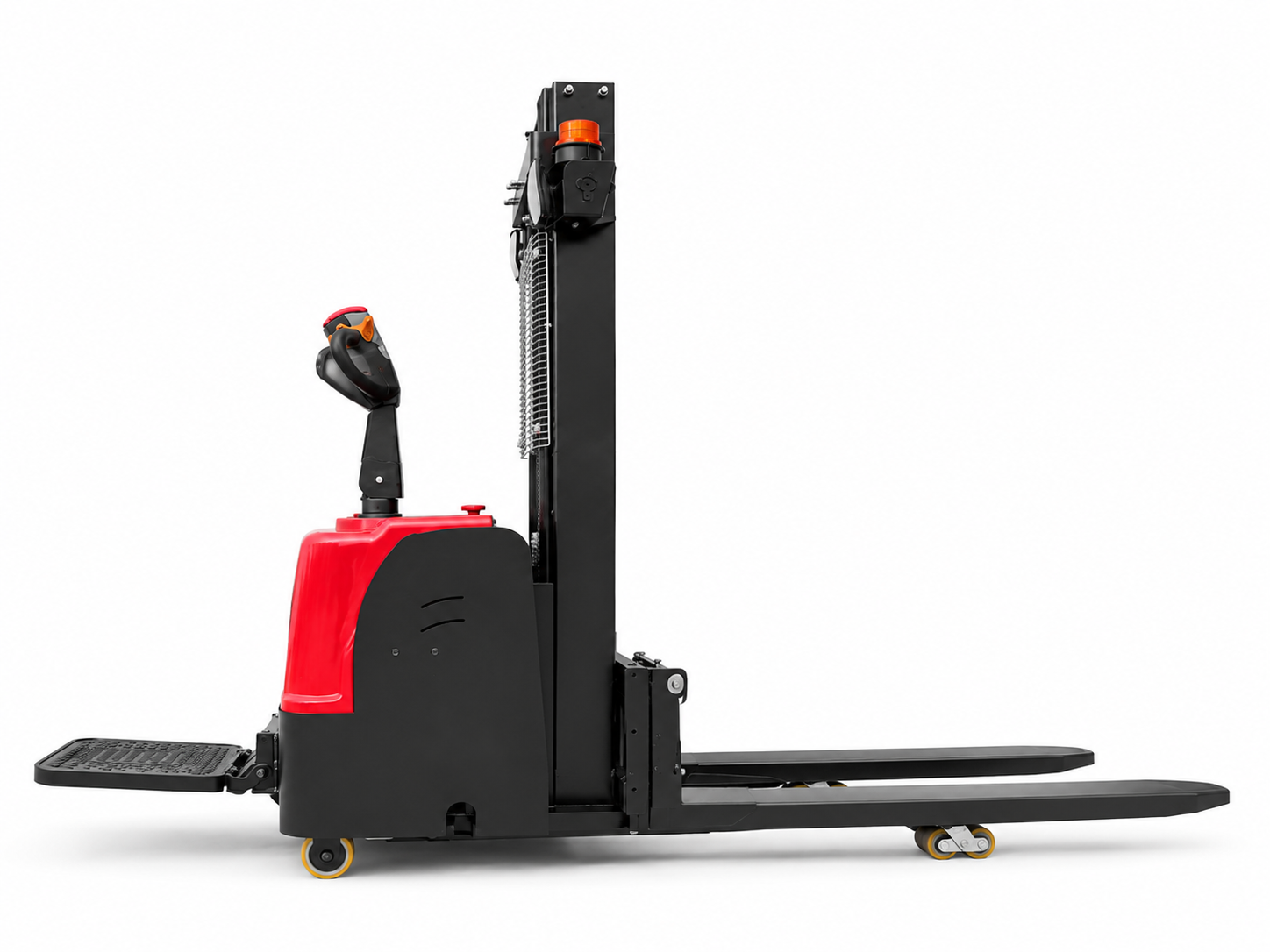

CDDA Electric Stacker with Initial Lift
A compact 1.5-ton fully electric pedestrian stacker featuring an initial-lift support-arm system and a 2,980 mm maximum fork lift height.
Request a Factory Quotation
Tell us your required capacity, lift height, working environment, quantity and destination. Our China-based team will recommend a practical configuration and provide a factory-direct quotation.
Technical Specifications
| Model | CDDA |
|---|---|
| Rated Capacity | 1,500 kg |
| Drive Type | Electric |
| Operator Type | Pedestrian |
| Load Center | 500 mm |
| Front Overhang | 700 mm |
| Wheelbase | 1,165 mm |
| Service Weight, Including Battery | 610 kg |
| Wheel Material | Polyurethane (PU) |
| Drive Wheel Size | Ø160 × 55 mm |
| Load Wheel Size | Ø80 × 70 mm |
| Balance Wheel Size | Ø125 × 50 mm |
| Wheel Configuration | 1x + 2 / 4 |
| Track Width, Load Side | 500 mm |
| Track Width, Balance-Wheel Side | 575 mm |
| Lowered Mast Height | 2,080 mm |
| Free Lift | None |
| Maximum Fork Lift Height | 2,980 mm |
| Extended Mast Height | 3,455 mm |
| Handle Height, Minimum / Maximum | 1,110 / 1,510 mm |
| Fork Height, Lowered / Initial-Lift Raised | 90 / 185 mm |
| Support-Arm Height, Lowered / Raised | 80 / 175 mm |
| Overall Length, Platform Folded | 2,000 mm |
| Length to Fork Face | 975 mm |
| Overall Width | 855 mm |
| Overall Height | 2,080 mm |
| Fork Dimensions | 65 × 180 × 1,150 mm |
| Fork Outside Width | 680 mm |
| Minimum Ground Clearance at Wheelbase Center | 20 mm |
| Aisle Width with 1,000 × 1,200 mm Pallet | 2,500 mm |
| Aisle Width with 800 × 1,200 mm Pallet | 2,500 mm |
| Minimum Turning Radius | 1,730 mm |
| Travel Speed, Laden / Unladen | 4.5 / 5.5 km/h |
| Lifting Speed, Laden / Unladen | 62 / 88 mm/s |
| Lowering Speed, Laden / Unladen | 94 / 70 mm/s |
| Maximum Gradeability, Laden / Unladen | 3% / 5% |
| Service Brake | Electromagnetic |
| Drive Motor | 0.75 kW |
| Lift Motor | 2.2 kW |
| Battery | 48 V / 32 Ah lead-acid |
| Drive Control | DC speed control |
| Noise Level at Operator Position | ≤70 dB(A) |
| Steering | Mechanical |
| Charger | 48 V / 4.5 A |
Product Overview
The CDDA is an economy-class fully electric pedestrian stacker with a rated capacity of 1,500 kg and a maximum fork lift height of 2,980 mm. Its initial-lift system raises the support arms independently, improving ground clearance and supporting double-pallet transport applications.
The compact 855 mm overall width and 1,730 mm turning radius make the truck suitable for indoor warehouses, workshops and distribution facilities. Final battery, mast and pallet compatibility should be confirmed according to the customer's operating conditions.
