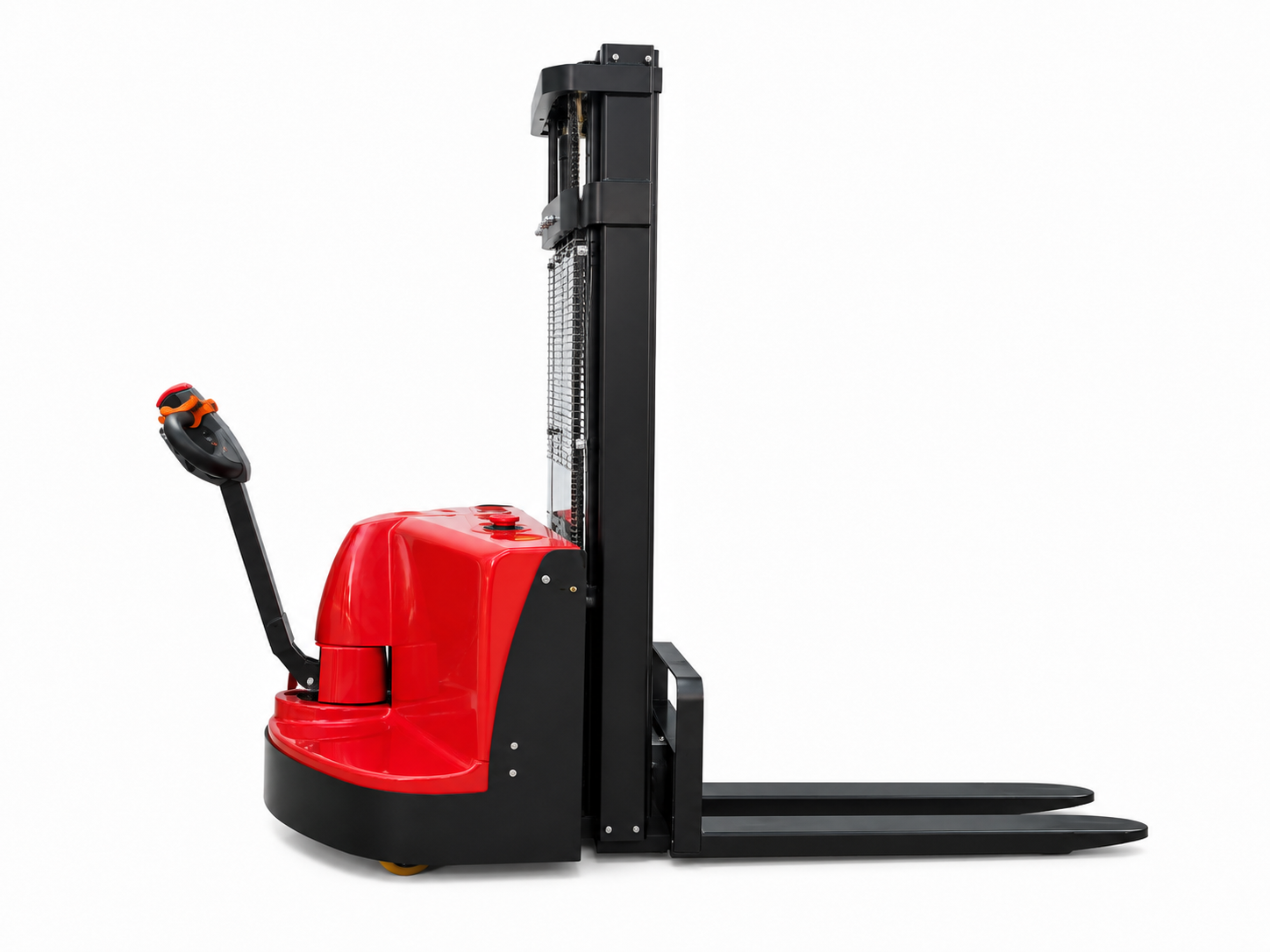

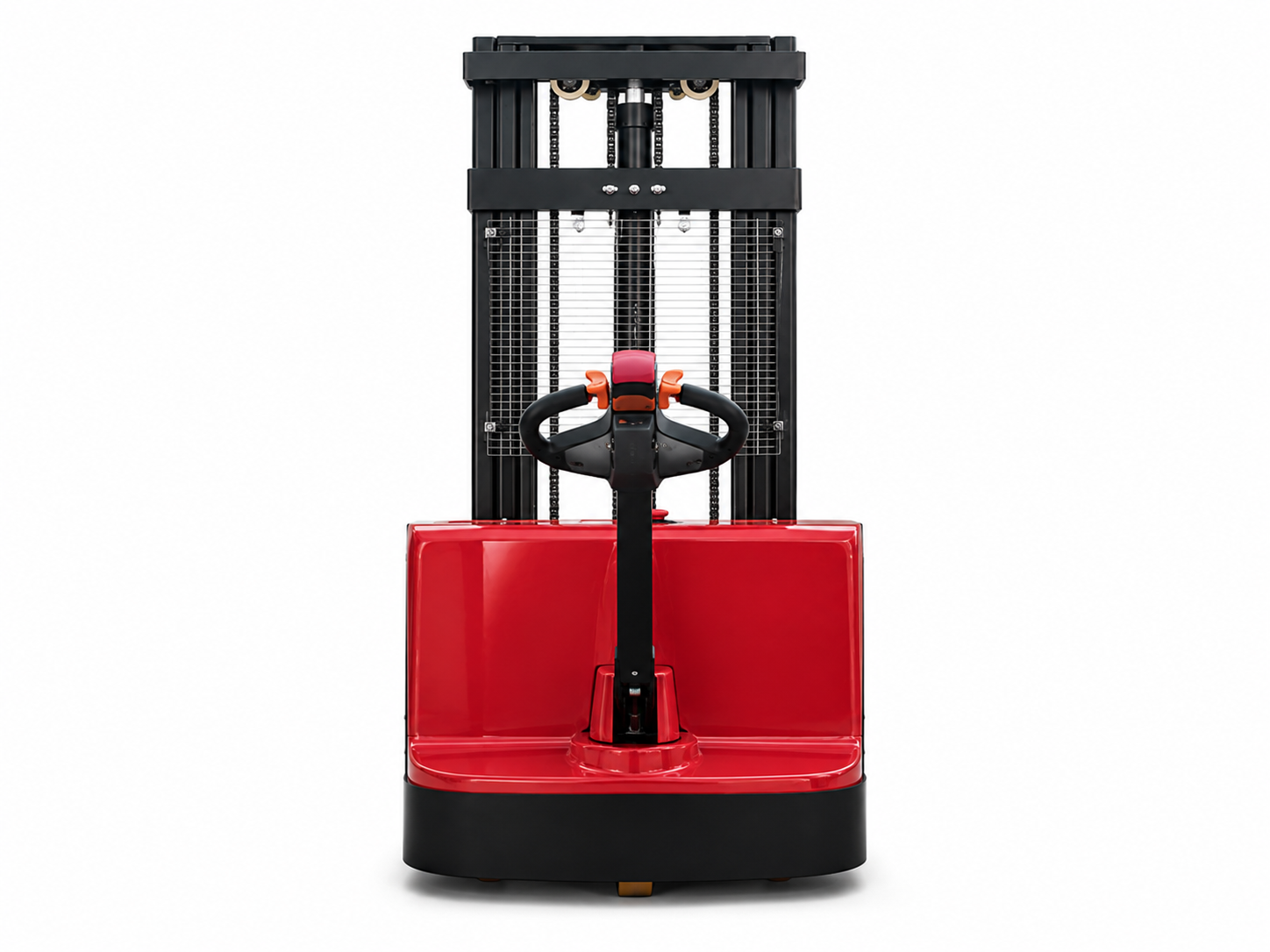

CDDB Walkie Fully Electric Stacker
A compact pedestrian fully electric stacker series with 1,000 kg and 1,500 kg capacity options and a 3,000 mm standard lift height.
Request a Factory Quotation
Tell us your required capacity, lift height, working environment, quantity and destination. Our China-based team will recommend a practical configuration and provide a factory-direct quotation.
Technical Specifications
| Models | CDDB1030 / CDB1530 |
|---|---|
| Rated Capacity | CDDB1030: 1,000 kg; CDB1530: 1,500 kg |
| Standard Lift Height | 3,000 mm |
| Load Center | 500 mm |
| Fork Dimensions | 1,150 × 170 × 60 mm |
| Minimum Ground Clearance | 25 mm |
| Tiller Handle Height | 1,490 mm |
| Fork Outside Width | 685 mm |
| Fork Inside Width | 345 mm |
| Tyre Material | Polyurethane (PU) |
| Control | Tiller handle |
| Speed Regulation | Stepless speed regulation |
| Minimum Turning Radius | 1,250 mm |
| Full-Load Travel Speed | 4 km/h |
| Maximum Gradeability | 3° / 5° |
| Battery | 24 V / 100 Ah |
| Drive Motor | 0.75 kW |
| Lift Motor | 2.2 kW |
| Tyre Size | 210 / 80 mm |
| Overall Dimensions | 1,750 × 860 × 2,100 mm |
| Service Weight | CDDB1030: 500 kg; CDB1530: 550 kg |
| Reference Working Time | 3 h |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 mm |
| Corresponding Lowered Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 mm |
Product Overview
The CDDB1030 and CDB1530 form a pedestrian fully electric stacker series for pallet stacking and short-distance material movement in warehouses, workshops and distribution facilities. The range covers rated capacities of 1,000 kg and 1,500 kg with a 3,000 mm standard lift height.
The compact 860 mm overall width and 1,250 mm turning radius support operation in limited working spaces. Final battery, mast and pallet compatibility should be confirmed according to the customer's operating requirements.
