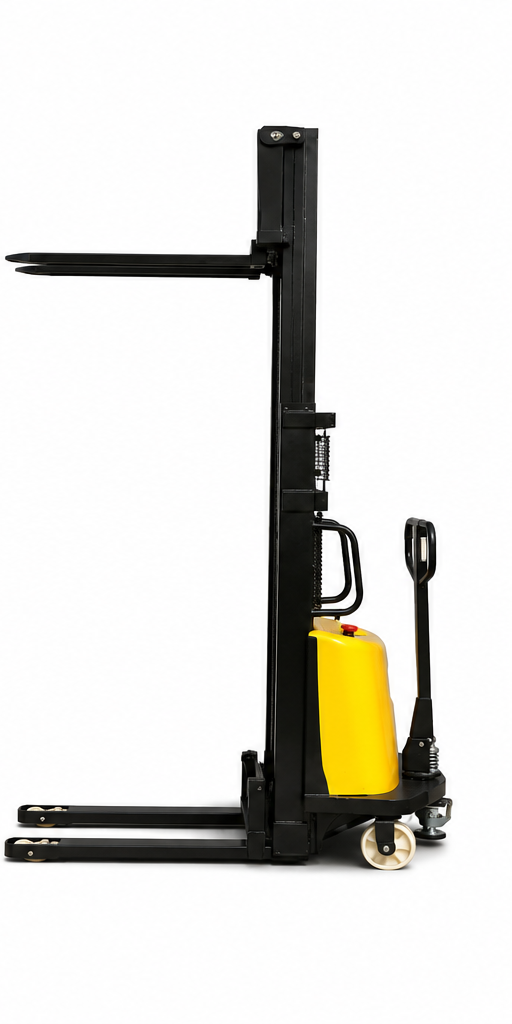

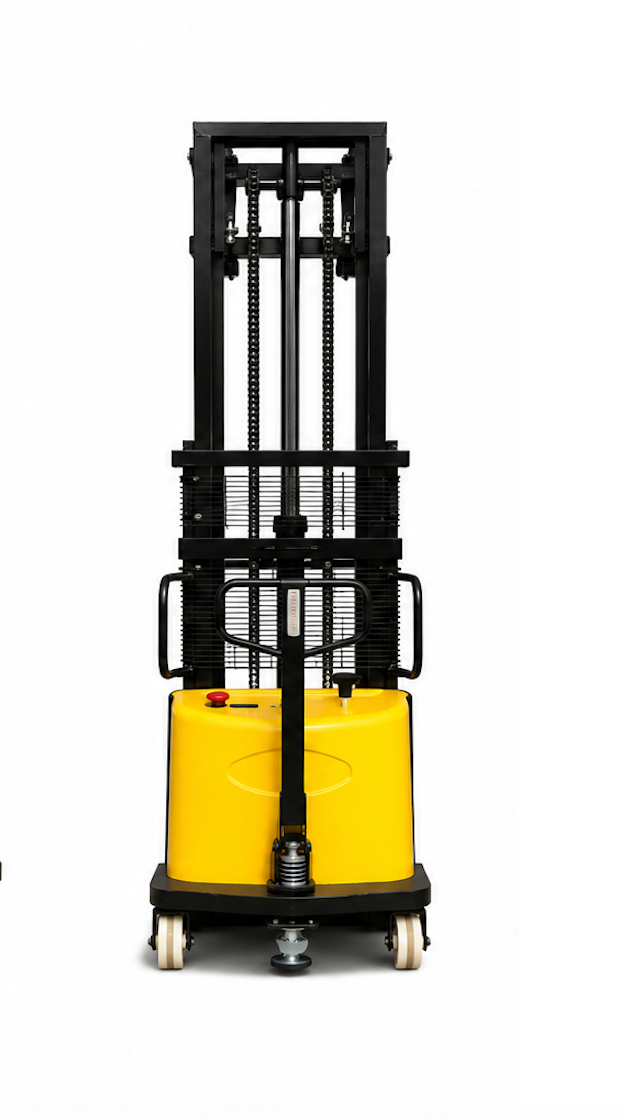

CDS Semi-Electric Pallet Stacker
A compact semi-electric pallet stacker series with 1,000 kg and 1,500 kg capacity options and a 3,000 mm standard lift height.
Request a Quote
Tell us your required capacity, lift height, working environment, quantity and destination. YanX will review your requirements with the manufacturing team and prepare a suitable quotation.
Confirm the Right Configuration
Tell us your required load, load center, maximum lift height, attachments, operating hours and battery preference. We will confirm the applicable capacity and configuration information for the selected model before quoting. Final specifications and warranty terms are set out in the quotation and contract.
Technical Specifications
| Models | CDS1030 / CDS1530 |
|---|---|
| Rated Capacity | CDS1030: 1,000 kg; CDS1530: 1,500 kg |
| Standard Lift Height | 3,000 mm |
| Load Center | 600 mm |
| Fork Dimensions | 1,100 × 170 × 60 mm |
| Minimum Ground Clearance | 30 mm |
| Tiller Handle Height | 1,490 mm |
| Fork Outside Width | 685 mm |
| Fork Inside Width | 345 mm |
| Wheel Material | Nylon |
| Control | Tiller handle |
| Speed Regulation | Stepless speed regulation |
| Minimum Turning Radius | 1,450 mm |
| Full-Load Travel Speed | 4 km/h |
| Maximum Gradeability | 3° / 5° |
| Battery | 12 V / 120 Ah |
| Lift Motor | 2.2 kW |
| Wheel Size | 180 × 60 mm |
| Overall Dimensions | 1,900 × 800 × 2,100 mm |
| Service Weight | CDS1030: 450 kg; CDS1530: 500 kg |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 mm |
| Corresponding Lowered Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 mm |
Product Overview
The CDS1030 and CDS1530 form a semi-electric pallet stacker series for pallet lifting, stacking and indoor warehouse handling. The range covers rated capacities of 1,000 kg and 1,500 kg with a 3,000 mm standard lift height.
The compact 800 mm overall width and 1,450 mm turning radius support operation in limited warehouse spaces. Final travel system, mast configuration and pallet compatibility should be confirmed according to the customer's operating requirements.
