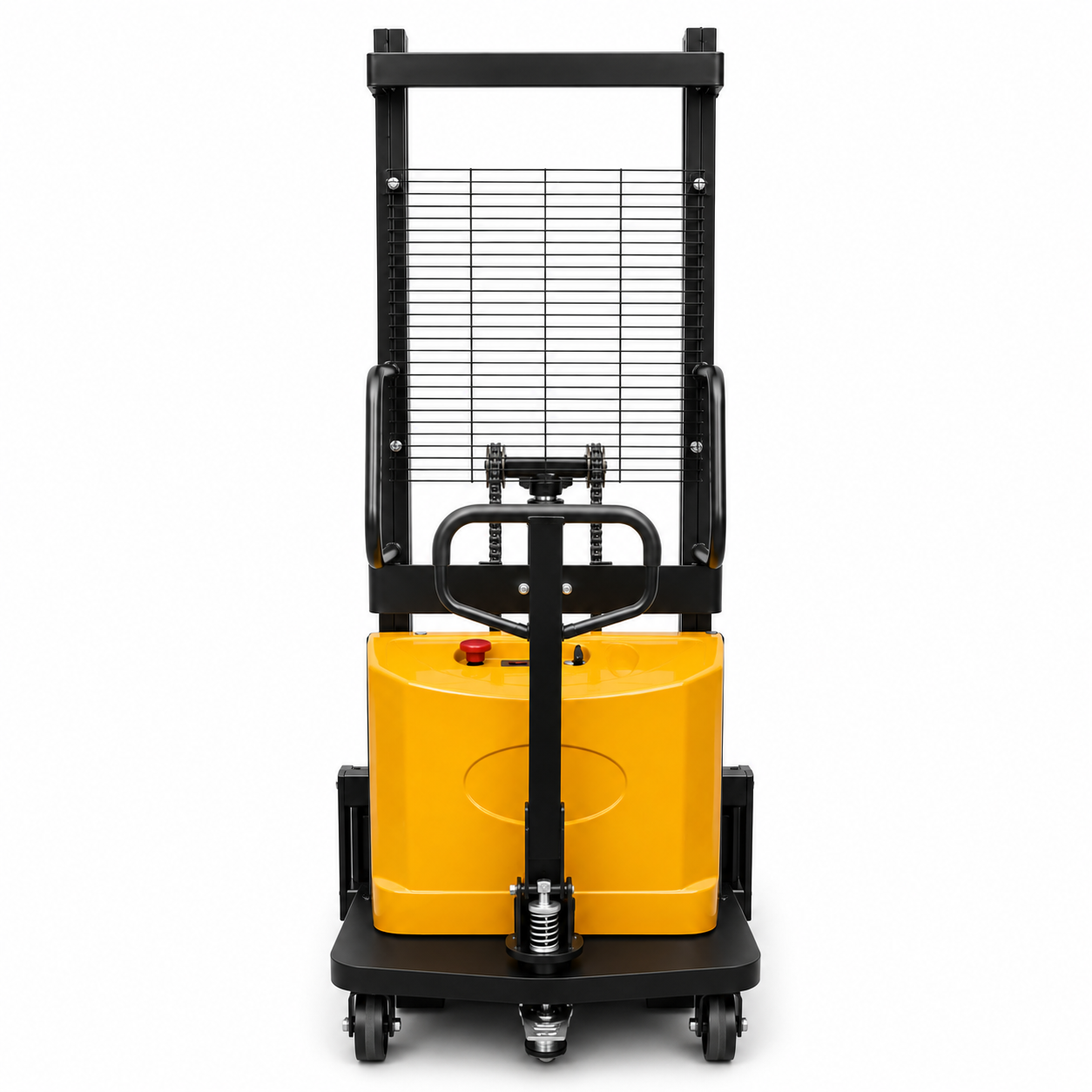

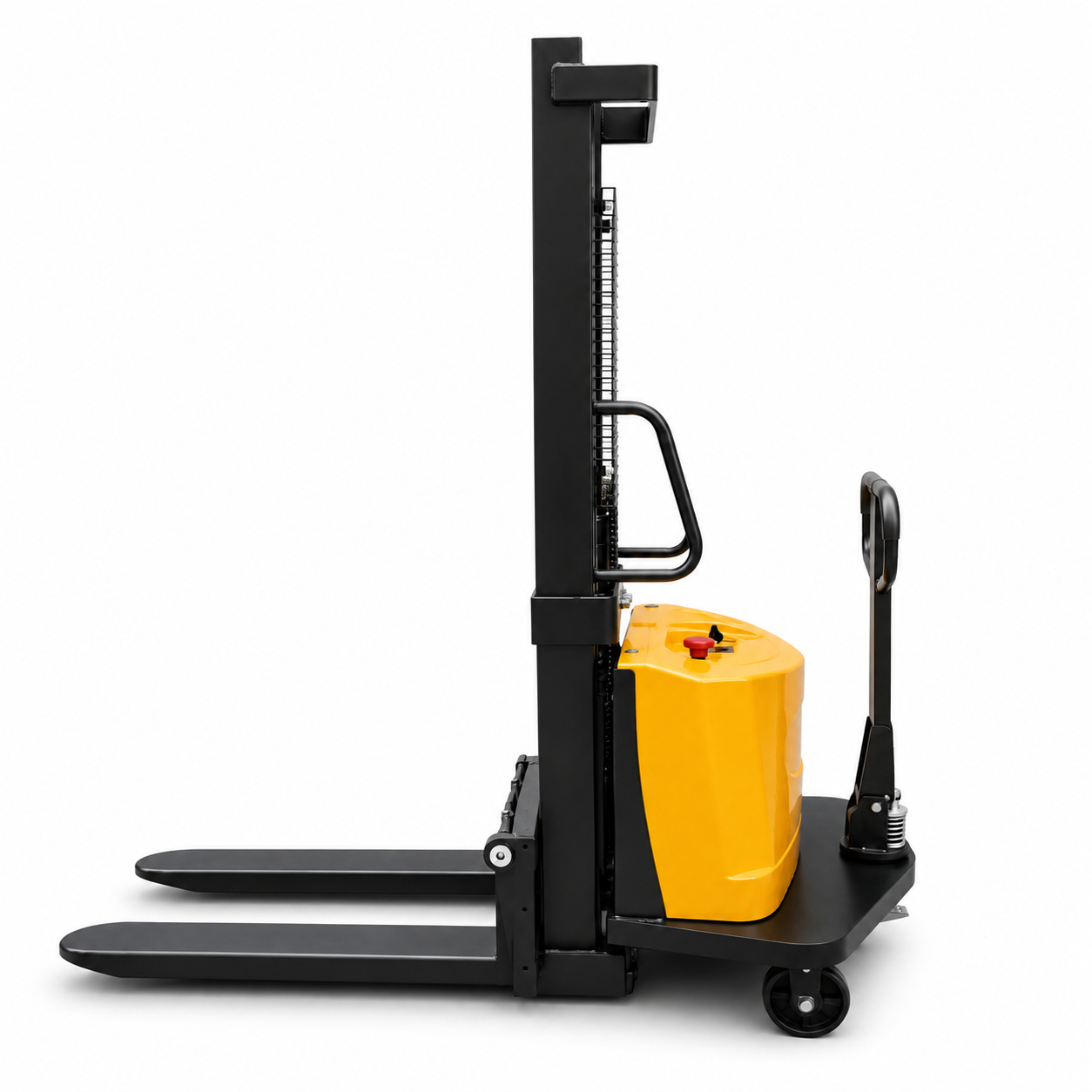

CDS Semi-Electric Straddle Stacker
A compact semi-electric straddle stacker series with 1,000 kg and 1,500 kg capacity options and a 3,000 mm standard lift height.
Request a Factory Quotation
Tell us your required capacity, lift height, working environment, quantity and destination. Our China-based team will recommend a practical configuration and provide a factory-direct quotation.
Technical Specifications
| Models | CDS1030 / CDS1530 |
|---|---|
| Rated Capacity | CDS1030: 1,000 kg; CDS1530: 1,500 kg |
| Standard Lift Height | 3,000 mm |
| Load Center | 600 mm |
| Fork Dimensions | 1,150 × 170 × 60 mm |
| Minimum Ground Clearance | 30 mm |
| Tiller Handle Height | 1,490 mm |
| Fork Outside Width | 685 mm |
| Fork Inside Width | 345 mm |
| Wheel Material | Nylon |
| Control | Tiller handle |
| Speed Regulation | Stepless speed regulation |
| Minimum Turning Radius | 1,450 mm |
| Full-Load Travel Speed | 4 km/h |
| Maximum Gradeability | 3° / 5° |
| Battery | 12 V / 120 Ah |
| Lift Motor | 2.2 kW |
| Wheel Size | 180 × 60 mm |
| Overall Dimensions | 1,900 × 800 × 2,100 mm |
| Service Weight | CDS1030: 450 kg; CDS1530: 500 kg |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 mm |
| Corresponding Lowered Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 mm |
Product Overview
The CDS1030 and CDS1530 form a semi-electric straddle stacker series for pallet lifting, stacking and warehouse material handling. The range covers rated capacities of 1,000 kg and 1,500 kg with a 3,000 mm standard lift height.
The straddle-leg structure supports a wider range of pallet configurations, while the compact 800 mm overall width and 1,450 mm turning radius assist operation in limited warehouse spaces. Final travel, battery and mast configuration should be confirmed according to the customer's operating requirements.
