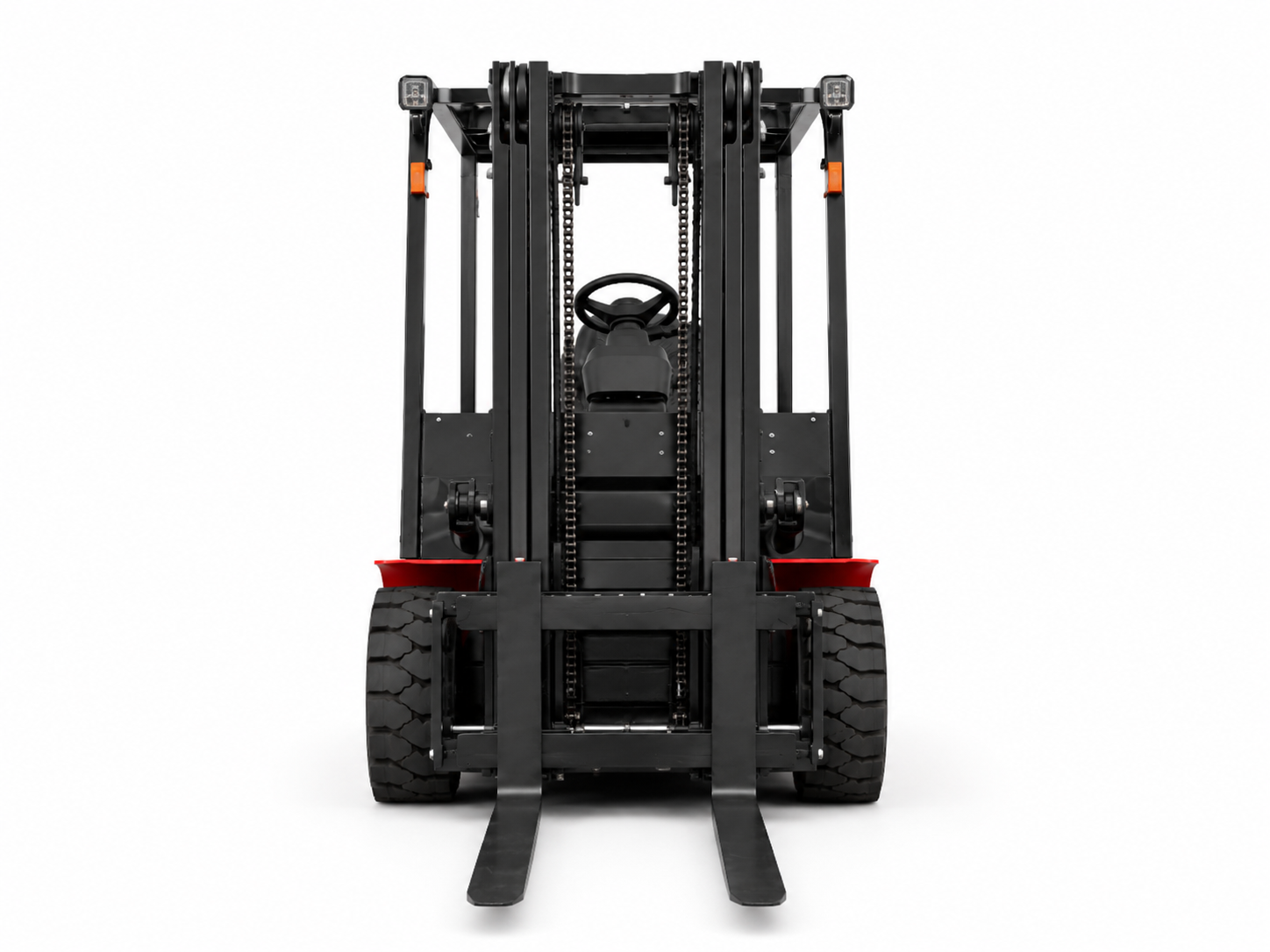

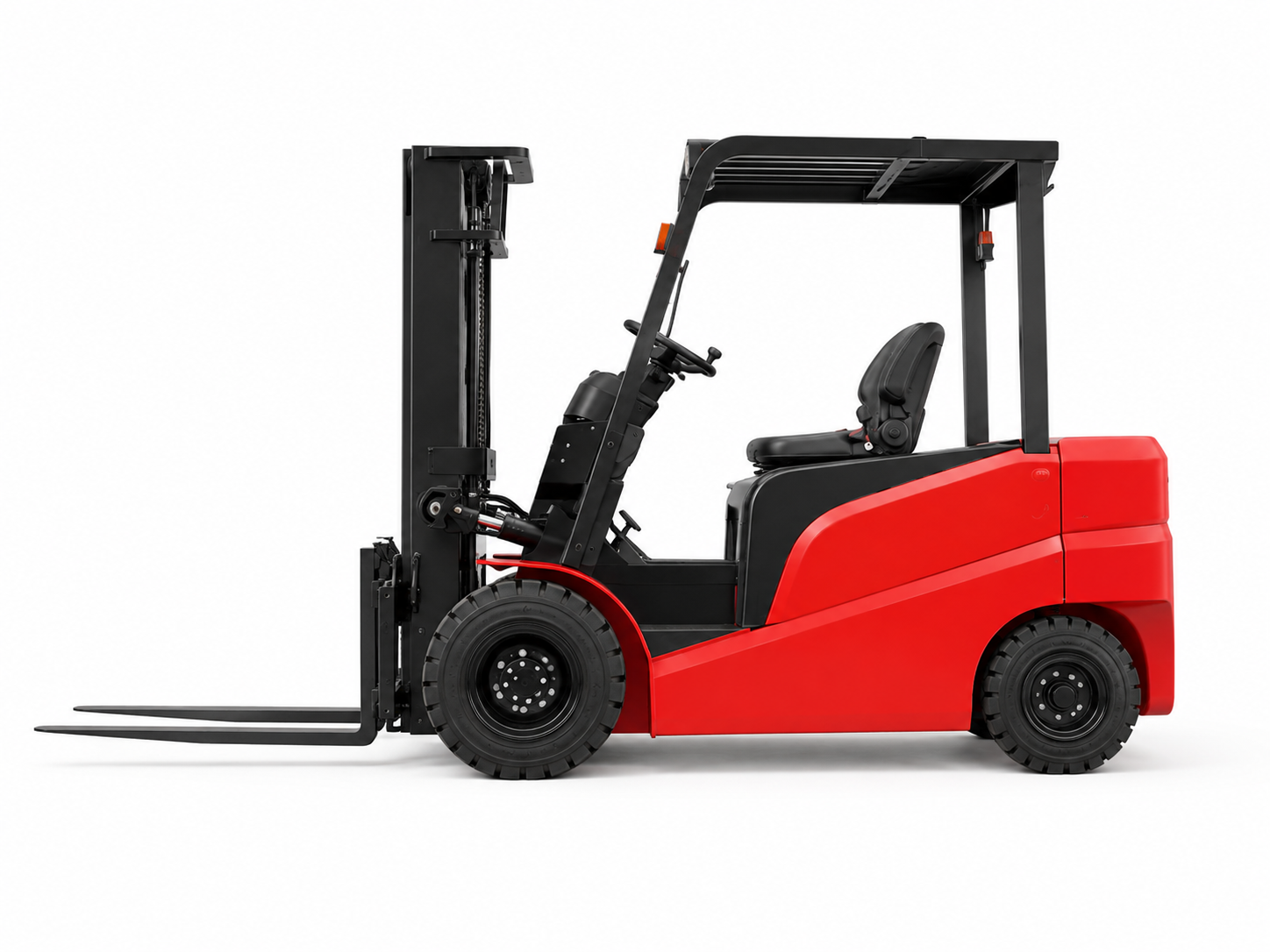

CPD Four-Wheel Counterbalance Electric Forklift
A stable four-wheel electric counterbalance forklift series with CPD1530, CPD2030 and CPD3030 model options.
Request a Quote
Tell us your required capacity, lift height, working environment, quantity and destination. YanX will review your requirements with the manufacturing team and prepare a suitable quotation.
Confirm the Right Configuration
Tell us your required load, load center, maximum lift height, attachments, operating hours and battery preference. We will confirm the applicable capacity and configuration information for the selected model before quoting. Final specifications and warranty terms are set out in the quotation and contract.
Technical Specifications
| Models | CPD1530 / CPD2030 / CPD3030 |
|---|---|
| Rated Capacity | CPD1530: 1,500 kg; CPD2030: 2,000 kg; CPD3030: 3,000 kg |
| Standard Lift Height | 3,000 mm |
| Load Center | CPD1530: 500 mm; CPD2030: 550 mm; CPD3030: 600 mm |
| Fork Dimensions | CPD1530: 1,070 × 100 × 35 mm; CPD2030 / CPD3030: 1,220 × 120 × 35 mm |
| Ground Clearance | CPD1530: 60 / 130 mm; CPD2030 / CPD3030: 80 / 130 mm |
| Tyre Type | Solid tyres |
| Control | Steering wheel |
| Speed Regulation | Stepless speed regulation |
| Overhead Guard Height | CPD1530: 2,000 mm; CPD2030 / CPD3030: 2,100 mm |
| Mast Tilt, Forward / Backward | 3° / 6° |
| Minimum Turning Radius | CPD1530: 1,750 mm; CPD2030: 2,100 mm; CPD3030: 2,150 mm |
| Full-Load Travel Speed | CPD1530: 6 km/h; CPD2030 / CPD3030: 15 km/h |
| Maximum Gradeability | CPD1530: 5° / 8°; CPD2030 / CPD3030: 15° |
| Battery | CPD1530: 48 V / 140 Ah; CPD2030: 60 V / 280 Ah; CPD3030: 48 V / 420 Ah |
| Reference Working Time | 4–6 h |
| Drive Motor | CPD1530: 3 kW; CPD2030 / CPD3030: 5 kW |
| Lift Motor | CPD1530: 3 kW; CPD2030: 5.5 kW; CPD3030: 5.5 / 8 kW |
| Tyre Size, Front / Rear | CPD1530: 400 / 400 mm; CPD2030 / CPD3030: 22×7-12 / 18×7-8 |
| Overall Dimensions | CPD1530: 3,000 × 1,030 × 2,100 mm; CPD2030: 3,450 × 1,100 × 2,100 mm; CPD3030: 3,750 × 1,160 × 2,100 mm |
| Service Weight | CPD1530: 2,200 kg; CPD2030: 3,000 kg; CPD3030: 3,800 kg |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 mm |
| Corresponding Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 mm |
Product Overview
The CPD1530, CPD2030 and CPD3030 form a four-wheel counterbalance electric forklift series for warehouse, factory and logistics applications. The range covers rated capacities from 1,500 kg to 3,000 kg, with a 3,000 mm standard lift height and several optional lift-height configurations.
Final mast, battery, tyre and configuration details should be confirmed according to the customer's load, operating environment and working-hour requirements.
