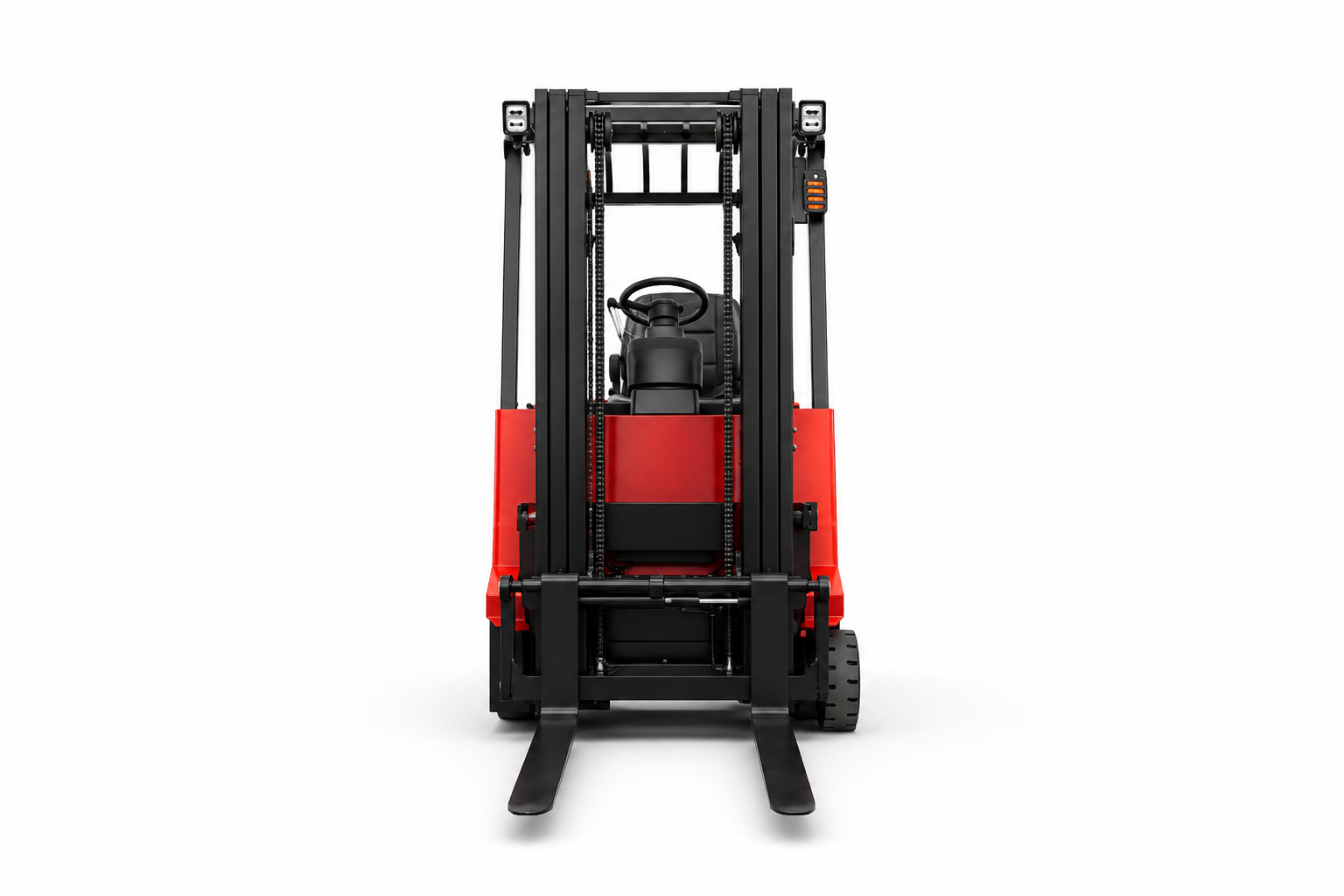

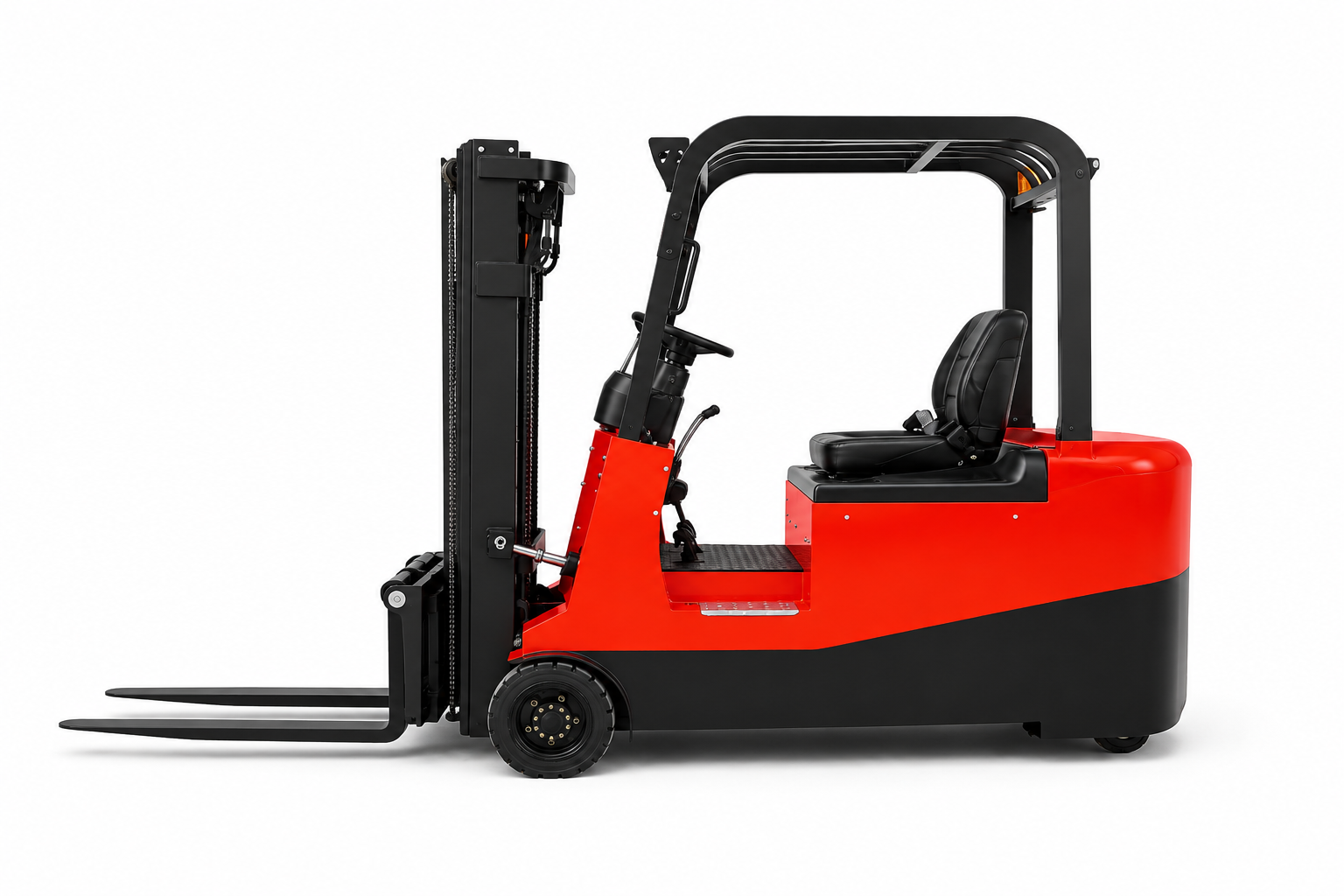

CPD Three-Wheel Counterbalance Electric Forklift
A compact three-wheel electric forklift family offering front-drive and rear-drive series with rated capacities from 1,000 kg to 2,000 kg.
Request a Quote
Tell us your required capacity, lift height, working environment, quantity and destination. YanX will review your requirements with the manufacturing team and prepare a suitable quotation.
Confirm the Right Configuration
Tell us your required load, load center, maximum lift height, attachments, operating hours and battery preference. We will confirm the applicable capacity and configuration information for the selected model before quoting. Final specifications and warranty terms are set out in the quotation and contract.
Technical Specifications
| Product Series | Front-drive three-wheel series / Rear-drive three-wheel series |
|---|---|
| Front-Drive Models | CPD1030 / CPD1530 |
| Rear-Drive Models | CPD1030 / CPD1530 / CPD2030 |
| Rated Capacity | Front-drive: 1,000 / 1,500 kg; Rear-drive: 1,000 / 1,500 / 2,000 kg |
| Standard Lift Height | 3,000 mm |
| Load Center | 500 mm |
| Fork Dimensions | 1,070 × 100 × 40 mm |
| Ground Clearance | 55 / 150 mm |
| Tyre Type | Solid tyres |
| Control | Steering wheel |
| Speed Regulation | Stepless speed regulation |
| Overhead Guard Height | 2,000 mm |
| Mast Tilt, Forward / Backward | 3° / 6° |
| Minimum Turning Radius | 1,750 mm |
| Full-Load Travel Speed | 6.5 km/h |
| Battery | Front-drive: 48 V / 140 Ah; Rear-drive: 24 V / 240 Ah |
| Reference Working Time | 4–6 h |
| Drive Motor | Front-drive: 3 kW; Rear-drive: CPD1030 1.2 kW, CPD1530 / CPD2030 1.5 kW |
| Lift Motor | 3 kW |
| Tyre Size, Front / Rear | Front-drive: 350 / 300 mm; Rear-drive: 350 / 250 mm |
| Overall Dimensions | Front-drive CPD1030: 2,970 × 1,020 × 2,100 mm; Front-drive CPD1530: 3,100 × 1,020 × 2,100 mm; Rear-drive CPD1030 / CPD1530: 2,970 × 1,020 × 2,100 mm; Rear-drive CPD2030: 3,100 × 1,020 × 2,100 mm |
| Service Weight | Front-drive: 1,600 / 1,800 kg; Rear-drive: 1,600 / 1,700 / 1,800 kg |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 mm |
| Corresponding Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 mm |
Product Overview
This three-wheel counterbalance electric forklift family includes separate front-drive and rear-drive series. Both use a compact three-wheel layout and share a 3,000 mm standard lift height, 1,750 mm minimum turning radius and 6.5 km/h full-load travel speed.
The front-drive series uses a 48 V / 140 Ah electrical system and a 3 kW drive motor, while the rear-drive series uses a 24 V / 240 Ah electrical system and offers rated capacities up to 2,000 kg. The appropriate series should be selected according to required capacity, traction, floor conditions, operating hours and application requirements.
