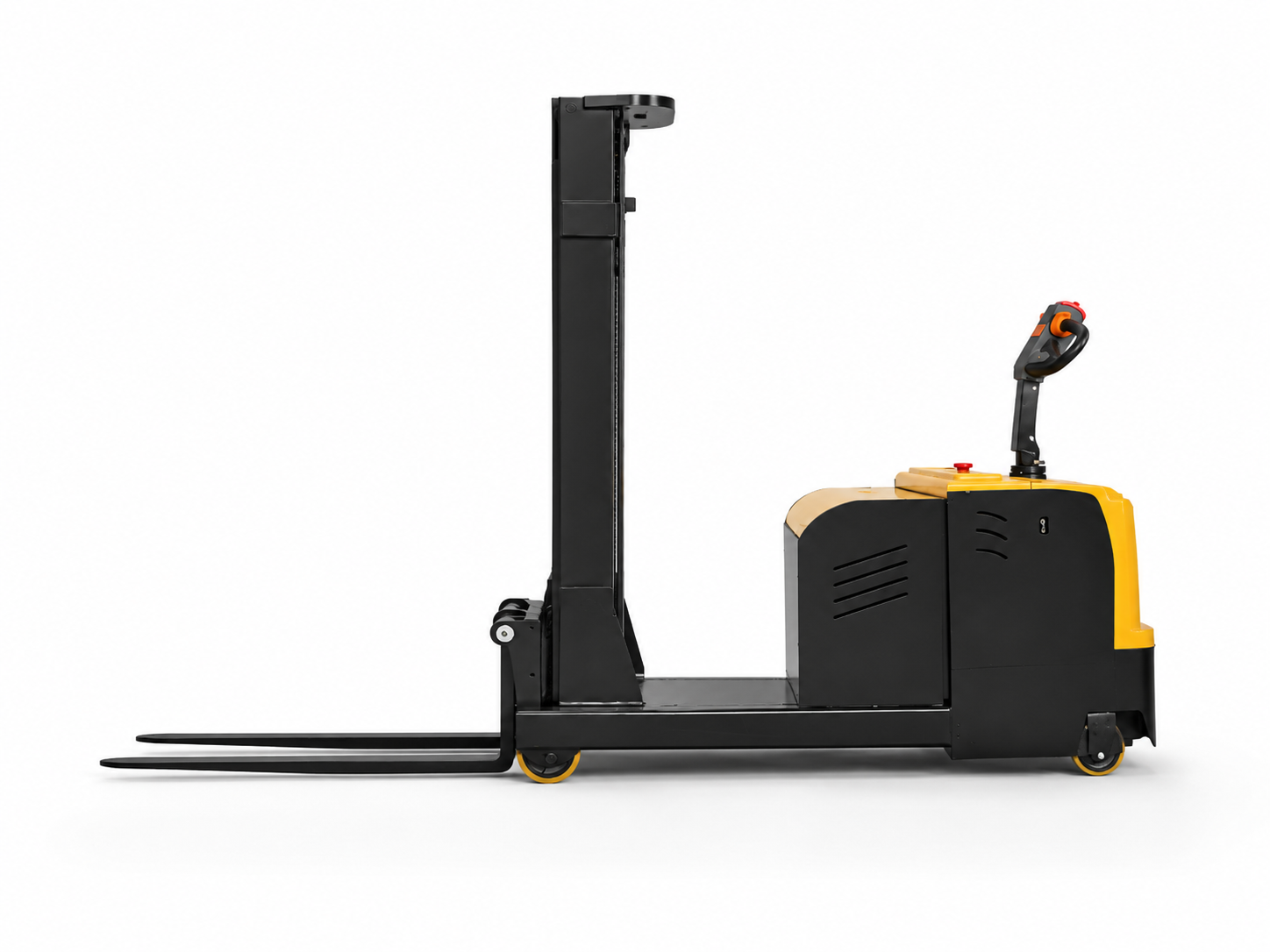

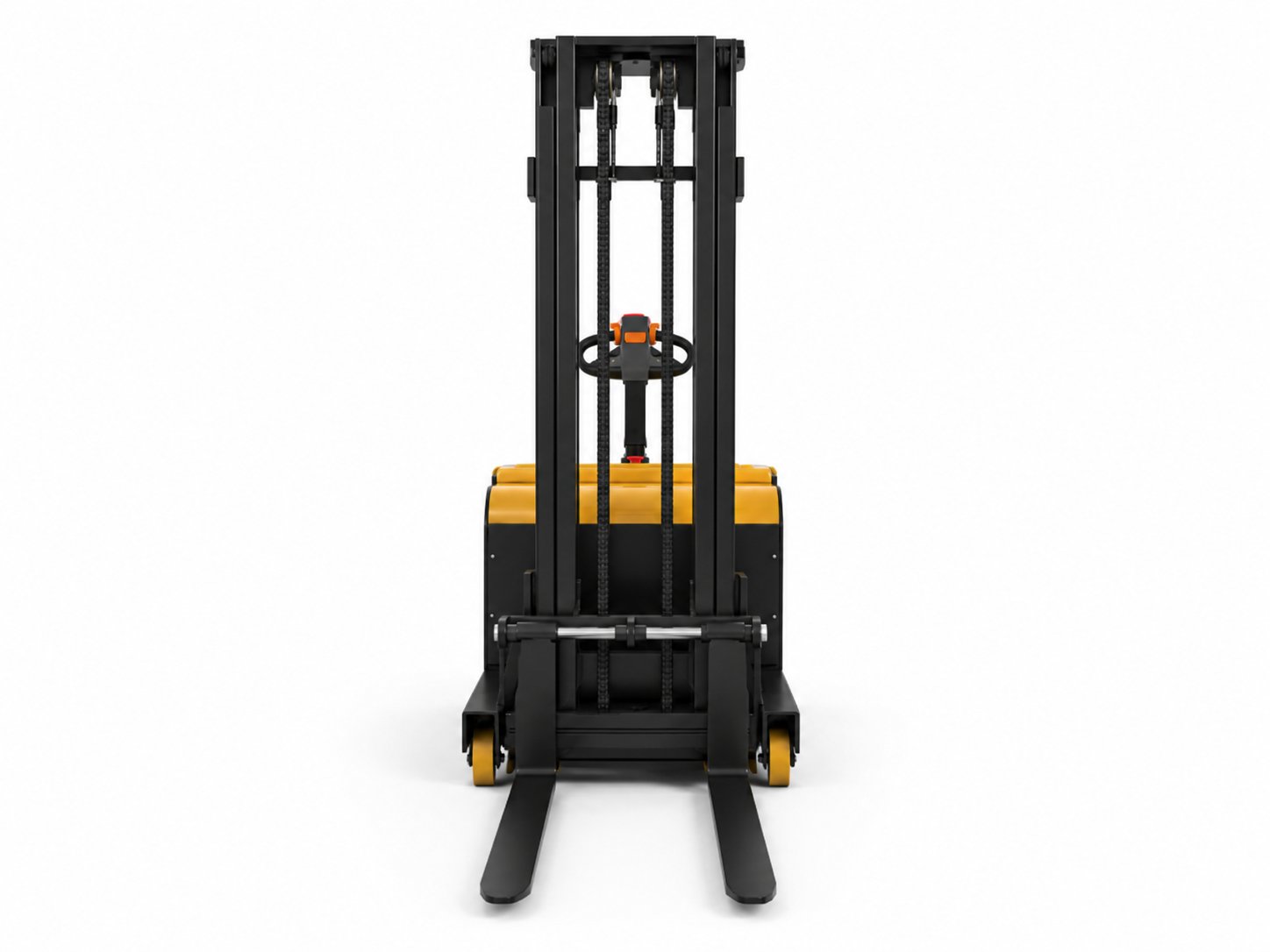

CPDS Stand-On Counterbalance Electric Forklift
A compact CPDS stand-on electric counterbalance forklift series with three rated-capacity options and a 3,000 mm standard lift height.
Request a Quote
Tell us your required capacity, lift height, working environment, quantity and destination. YanX will review your requirements with the manufacturing team and prepare a suitable quotation.
Confirm the Right Configuration
Tell us your required load, load center, maximum lift height, attachments, operating hours and battery preference. We will confirm the applicable capacity and configuration information for the selected model before quoting. Final specifications and warranty terms are set out in the quotation and contract.
Technical Specifications
| Models | CPDS1030 / CPDS1530 / CPDS2030 |
|---|---|
| Rated Capacity | CPDS1030: 1,000 kg; CPDS1530: 1,500 kg; CPDS2030: 2,000 kg |
| Standard Lift Height | 3,000 mm |
| Load Center | 500 mm |
| Fork Dimensions | 1,070 × 100 × 40 mm |
| Ground Clearance | 100 mm |
| Drive Wheel Size | 250 × 80 mm |
| Control | Tiller handle |
| Speed Regulation | Stepless speed regulation |
| Operator Platform Length | 410 mm |
| Minimum Turning Radius | CPDS1030: 1,650 mm; CPDS1530: 1,750 mm; CPDS2030: 1,850 mm |
| Full-Load Travel Speed | 4.5 km/h |
| Maximum Gradeability | 5° |
| Battery | 24 V / 180 or 210 Ah |
| Drive Motor | CPDS1030: 1.2 kW; CPDS1530 / CPDS2030: 1.5 kW |
| Lift Motor | CPDS1030 / CPDS1530: 2.2 kW; CPDS2030: 3 kW |
| Overall Dimensions, Platform Folded | CPDS1030: 2,900 × 1,030 × 2,100 mm; CPDS1530: 3,000 × 1,030 × 2,100 mm; CPDS2030: 3,100 × 1,030 × 2,100 mm |
| Service Weight | CPDS1030: 1,600 kg; CPDS1530: 1,700 kg; CPDS2030: 1,750 kg |
| Reference Working Time | 6 h |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 mm |
| Corresponding Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 mm |
Product Overview
The CPDS1030, CPDS1530 and CPDS2030 form a stand-on counterbalance electric forklift series for warehouse, factory and logistics applications. The range covers rated capacities from 1,000 kg to 2,000 kg and uses a 3,000 mm standard lift height.
The stand-on operating position and compact turning radius support frequent travel and pallet handling in space-constrained working areas. Final battery, mast and configuration details should be confirmed according to the customer's operating conditions and working-hour requirements.
