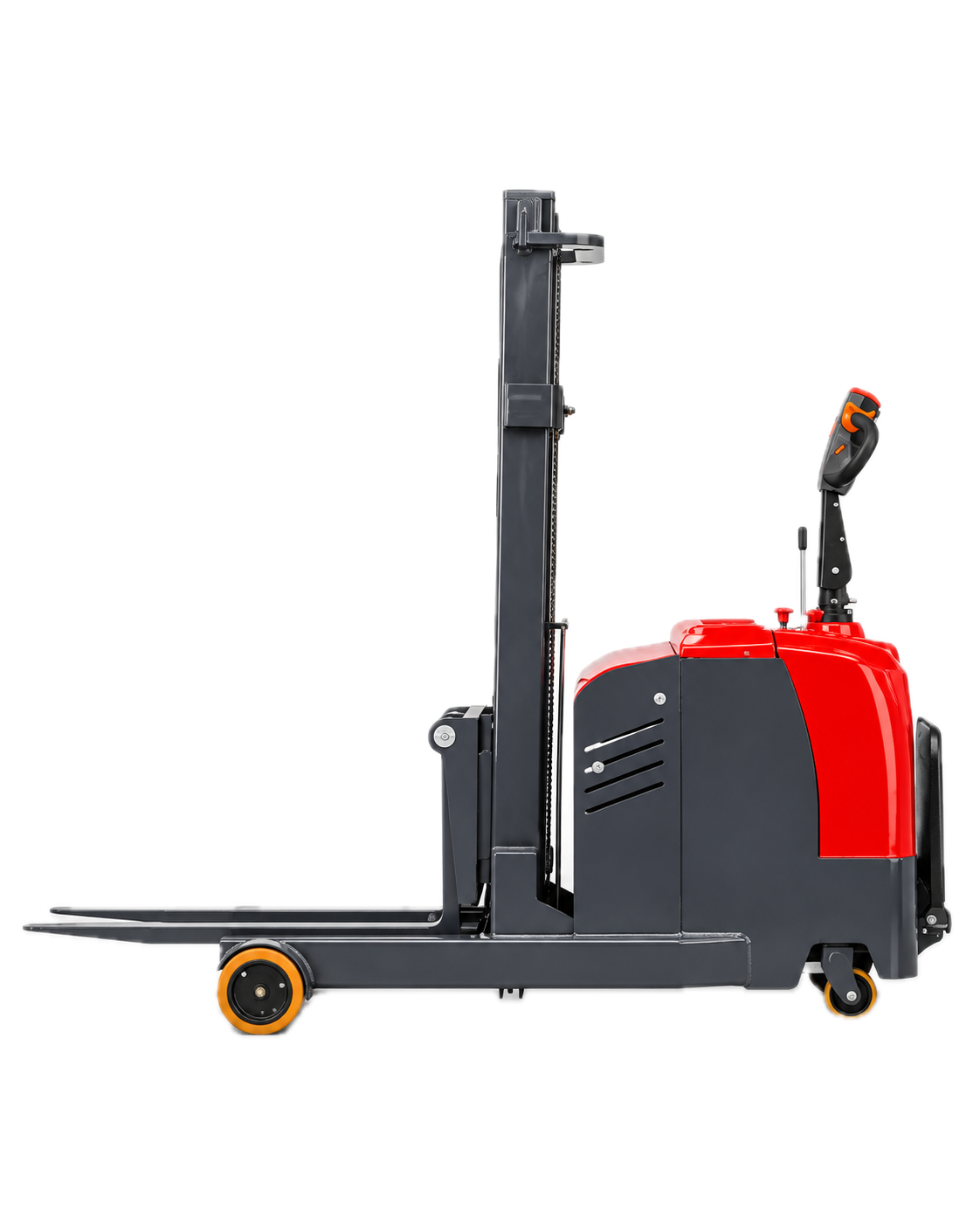

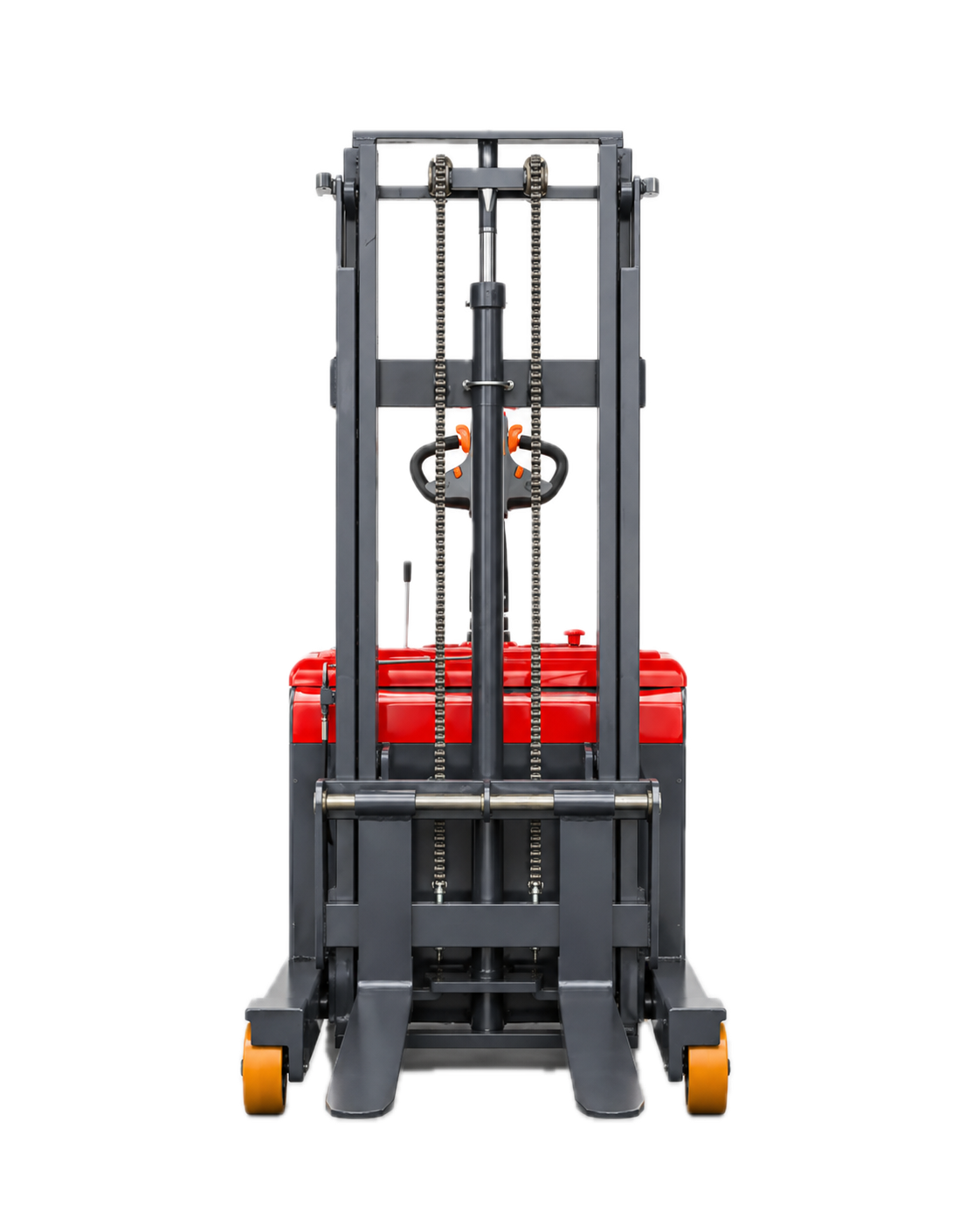

CQD Counterbalance Reach Truck
A compact counterbalance reach truck series with three capacity options, 500–600 mm reach distance and a stand-on operating platform.
Request a Factory Quotation
Tell us your required capacity, lift height, working environment, quantity and destination. Our China-based team will recommend a practical configuration and provide a factory-direct quotation.
Technical Specifications
| Models | CQD1030 / CQD1530 / CQD2030 |
|---|---|
| Rated Capacity | CQD1030: 1,000 kg; CQD1530: 1,500 kg; CQD2030: 2,000 kg |
| Standard Lift Height | 3,000 mm |
| Load Center | 500 mm |
| Fork Dimensions | 1,070 × 100 × 40 mm |
| Ground Clearance | 100 mm |
| Drive Wheel Size | 250 × 80 mm |
| Control | Tiller handle |
| Speed Regulation | Stepless speed regulation |
| Operator Platform Length | 410 mm |
| Minimum Turning Radius | CQD1030: 1,650 mm; CQD1530: 1,750 mm; CQD2030: 1,850 mm |
| Full-Load Travel Speed | 4.5 km/h |
| Maximum Gradeability | 5° |
| Battery | 24 V / 180 or 210 Ah |
| Drive Motor | CQD1030: 1.2 kW; CQD1530 / CQD2030: 1.5 kW |
| Lift Motor | CQD1030 / CQD1530: 2.2 kW; CQD2030: 3 kW |
| Overall Dimensions, Platform Folded | CQD1030: 2,370 × 1,070 × 2,100 mm; CQD1530: 2,470 × 1,070 × 2,100 mm; CQD2030: 2,570 × 1,070 × 2,100 mm |
| Service Weight | CQD1030: 1,620 kg; CQD1530: 1,710 kg; CQD2030: 1,820 kg |
| Reach Distance | CQD1030: 500 mm; CQD1530: 550 mm; CQD2030: 600 mm |
| Reference Working Time | 4–6 h |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 mm |
| Corresponding Lowered Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 mm |
Product Overview
The CQD1030, CQD1530 and CQD2030 form a compact counterbalance reach truck series for warehouse pallet handling, manufacturing facilities and logistics operations. The range covers rated capacities from 1,000 kg to 2,000 kg and uses a 3,000 mm standard lift height.
The reach mechanism provides 500 mm travel on the CQD1030, 550 mm on the CQD1530 and 600 mm on the CQD2030. Final battery, mast and configuration details should be confirmed according to the customer's load, aisle width and operating requirements.
