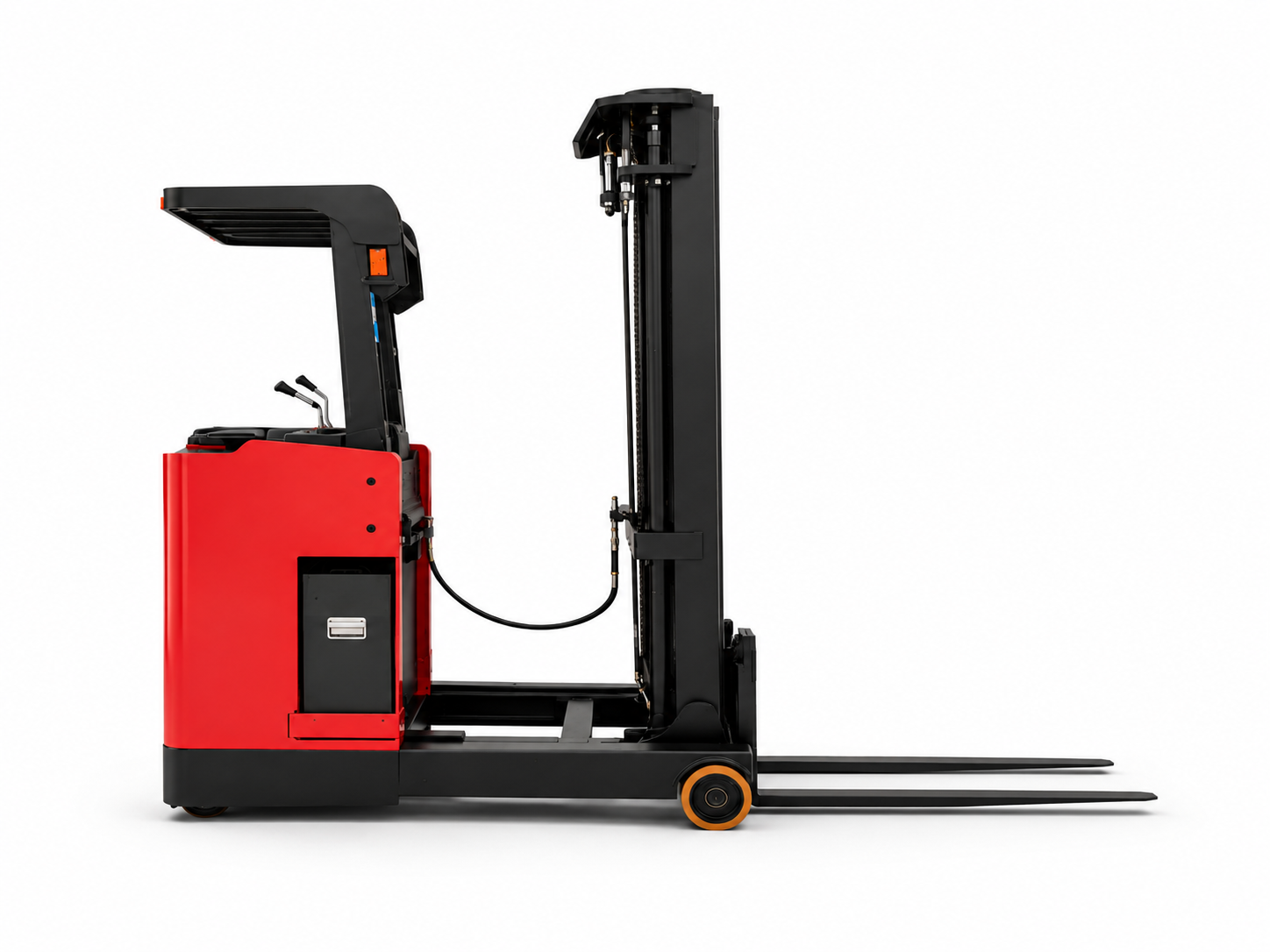

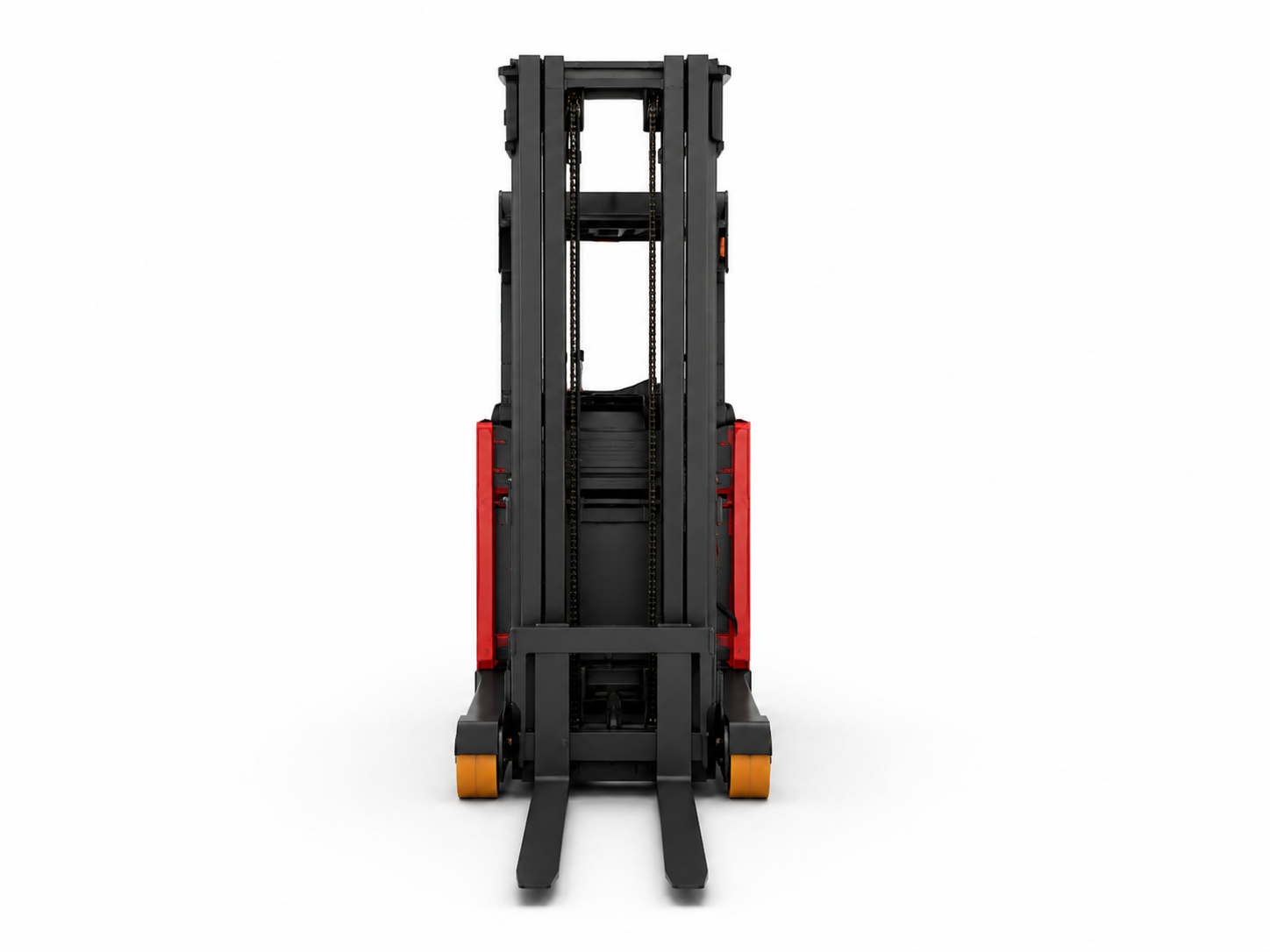

CQDS Stand-On Reach Truck
A compact CQDS stand-on reach truck series with three capacity options, 500–600 mm reach distance and lift-height configurations up to 8,000 mm.
Request a Quote
Tell us your required capacity, lift height, working environment, quantity and destination. YanX will review your requirements with the manufacturing team and prepare a suitable quotation.
Confirm the Right Configuration
Tell us your required load, load center, maximum lift height, attachments, operating hours and battery preference. We will confirm the applicable capacity and configuration information for the selected model before quoting. Final specifications and warranty terms are set out in the quotation and contract.
Technical Specifications
| Models | CQDS1030 / CQDS1530 / CQDS2030 |
|---|---|
| Rated Capacity | CQDS1030: 1,000 kg; CQDS1530: 1,500 kg; CQDS2030: 2,000 kg |
| Standard Lift Height | 3,000 mm |
| Load Center | 500 mm |
| Fork Dimensions | CQDS1030 / CQDS1530: 1,070 × 100 × 35 mm; CQDS2030: 1,220 × 120 × 35 mm |
| Ground Clearance | 45 mm |
| Control | Steering wheel |
| Speed Regulation | Stepless speed regulation |
| Overhead Guard Height | 2,200 mm |
| Mast Tilt, Forward / Backward | 3° / 6° |
| Minimum Turning Radius | CQDS1030: 1,600 mm; CQDS1530: 1,650 mm; CQDS2030: 1,800 mm |
| Full-Load Travel Speed | 4.5 km/h |
| Maximum Gradeability | 5° |
| Battery | 24 V / 280 Ah |
| Drive Motor | CQDS1030: 1.5 kW; CQDS1530 / CQDS2030: 2.5 kW |
| Lift Motor | 4.5 kW |
| Overall Dimensions | CQDS1030: 2,370 × 1,020 × 2,200 mm; CQDS1530: 2,470 × 1,020 × 2,200 mm; CQDS2030: 2,570 × 1,120 × 2,200 mm |
| Service Weight | CQDS1030: 2,000 kg; CQDS1530: 2,100 kg; CQDS2030: 2,200 kg |
| Reference Working Time | 6 h |
| Reach Distance | CQDS1030 / CQDS1530: 500 mm; CQDS2030: 600 mm |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 / 4,500 / 5,500 / 6,000 / 7,000 / 8,000 mm |
| Corresponding Lowered Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 / 2,250 / 2,500 / 2,650 / 3,000 / 3,300 mm |
Product Overview
The CQDS1030, CQDS1530 and CQDS2030 form a stand-on electric reach truck series for warehouse pallet handling and high-rack storage. The range covers rated capacities from 1,000 kg to 2,000 kg and offers a standard lift height of 3,000 mm.
The reach mechanism provides 500 mm travel on the 1.0-ton and 1.5-ton models and 600 mm on the 2.0-ton model. Multiple lift-height configurations are available up to 8,000 mm. Final mast, battery and configuration details should be confirmed according to the customer's aisle width, rack height and operating conditions.
