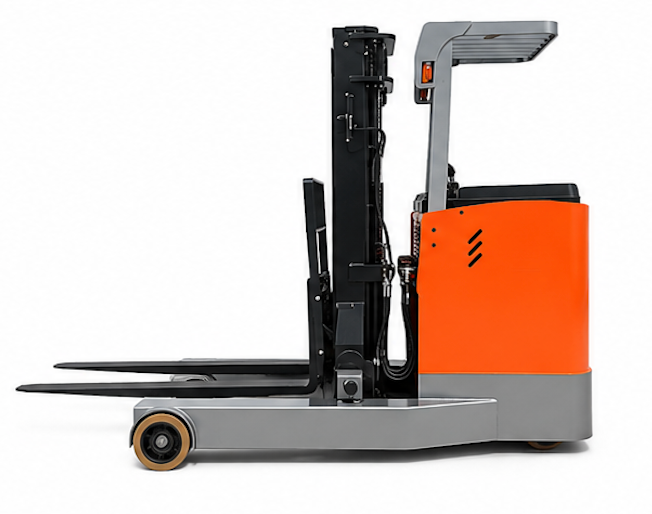

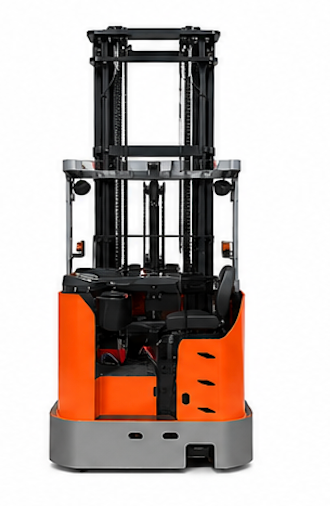

CQDZ Seated Reach Truck
A seated CQDZ reach truck series with 1,500 kg and 2,000 kg capacity options, 550–600 mm reach distance and lift-height configurations up to 8,000 mm.
Request a Factory Quotation
Tell us your required capacity, lift height, working environment, quantity and destination. Our China-based team will recommend a practical configuration and provide a factory-direct quotation.
Technical Specifications
| Models | CQDZ1530 / CQDZ2030 |
|---|---|
| Rated Capacity | CQDZ1530: 1,500 kg; CQDZ2030: 2,000 kg |
| Residual Capacity at Maximum Lift Height | CQDZ1530: 800 kg; CQDZ2030: 1,000 kg |
| Service Weight | CQDZ1530: 3,000 kg; CQDZ2030: 3,200 kg |
| Overall Length, Forks Retracted | CQDZ1530: 2,470 mm; CQDZ2030: 2,570 mm |
| Overall Width | 1,200–1,480 mm |
| Lowered Mast Height | 2,100 mm |
| Overhead Guard Height | 2,200 mm |
| Standard Maximum Lift Height | 3,000 mm |
| Reach Distance | CQDZ1530: 550 mm; CQDZ2030: 600 mm |
| Ground Clearance | 100 mm |
| Wheelbase, Left / Right | 1,465 / 1,465 mm |
| Front Overhang | 190 mm |
| Track Width, Front / Rear | 1,350 / 800 mm |
| Maximum Lifting Speed, Unladen | 150 mm/s |
| Maximum Lifting Speed, Laden | 90 mm/s |
| Maximum Lowering Speed, Unladen | 115 mm/s |
| Maximum Lowering Speed, Laden | 360 mm/s |
| Reach Speed, Laden | 195 mm/s |
| Maximum Travel Speed, Unladen | 8 km/h |
| Maximum Travel Speed, Laden | 7 km/h |
| Minimum Outside Turning Radius | CQDZ1530: 1,700 mm; CQDZ2030: 1,800 mm |
| Maximum Gradeability, Laden | 5% |
| Load Center | CQDZ1530: 500 mm; CQDZ2030: 600 mm |
| Lift Motor | 6.5 kW |
| Drive Motor | 5 kW |
| Battery | 48 V / 400 Ah |
| Available Lift Heights | 1,600 / 2,000 / 2,500 / 3,000 / 3,500 / 4,500 / 5,500 / 6,000 / 7,000 / 8,000 mm |
| Corresponding Lowered Mast Heights | 2,100 / 1,600 / 1,850 / 2,100 / 2,350 / 2,250 / 2,500 / 2,650 / 3,000 / 3,300 mm |
Product Overview
The CQDZ1530 and CQDZ2030 form a seated electric reach truck series for high-rack warehouses, logistics centers and manufacturing facilities. The range offers rated capacities of 1,500 kg and 2,000 kg, with forward reach distances of 550 mm and 600 mm.
The seated operator compartment is suitable for longer and more frequent working cycles. Multiple lift-height configurations are available up to 8,000 mm. Final mast, battery and configuration details should be confirmed according to the customer's aisle width, rack height, load dimensions and operating conditions.
