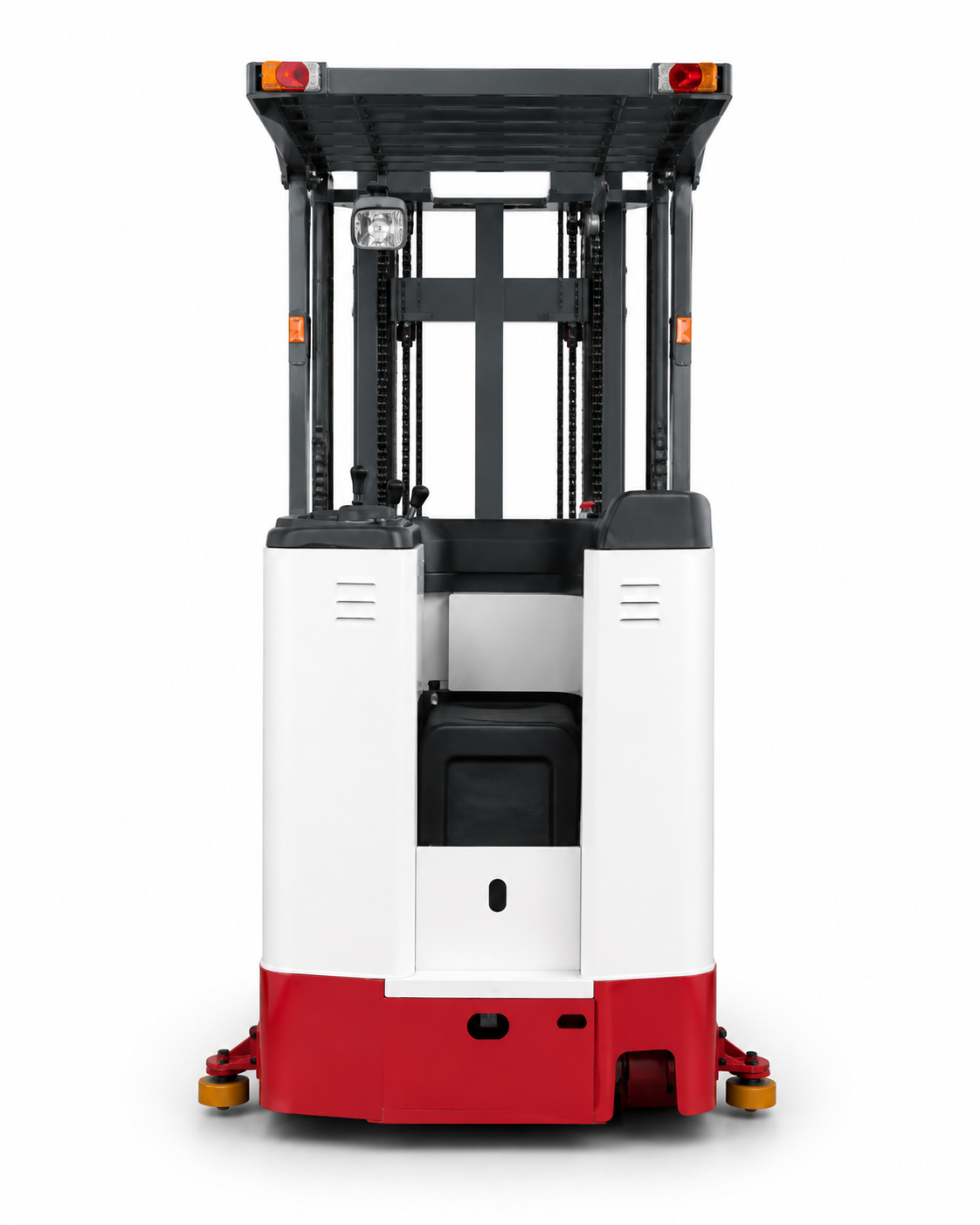

CQDZM Seated VNA Three-Way Electric Forklift
The CQDZM20 is a seated three-way electric forklift designed for high-rack warehousing, narrow aisles and efficient pallet positioning.
Request a Quote
Tell us your required capacity, lift height, working environment, quantity and destination. YanX will review your requirements with the manufacturing team and prepare a suitable quotation.
Confirm the Right Configuration
Tell us your required load, load center, maximum lift height, attachments, operating hours and battery preference. We will confirm the applicable capacity and configuration information for the selected model before quoting. Final specifications and warranty terms are set out in the quotation and contract.
Technical Specifications
| Model | CQDZM20 |
|---|---|
| Rated Capacity | 2,000 kg |
| Load Center | 500 mm |
| Load Capacity at 6,000 mm Lift Height | 1,000 kg |
| Overall Length | Forks sideways: 2,880 mm; forks forward: 3,870 mm |
| Overall Width | 1,510 mm |
| Width at Horizontal Guide Wheels | 1,510 mm |
| Overall Height | Lowered mast: 2,850 mm; overhead guard: 2,240 mm |
| Front Overhang | 740 mm |
| Wheelbase | 1,527 mm |
| Track Width, Front / Rear | 1,235 / 700 mm |
| Ground Clearance, Unladen / Laden | Wheelbase center: 55 / 55 mm; lowest point: 20 / 20 mm |
| Specified Maximum Lift Height | 6,000 mm |
| Service Weight, Including Battery | 4,500 kg |
| Maximum Lifting Speed, Unladen / Laden | 160 / 100 mm/s |
| Maximum Lowering Speed, Unladen / Laden | 300 / 320 mm/s |
| Minimum Outside Turning Radius | 1,820 mm |
| Maximum Travel Speed, Unladen / Laden | 5.0 / 4.0 km/h |
| Maximum Gradeability, Unladen / Laden | 5% / 5% |
| Fork Dimensions | 1,220 × 120 × 40 mm |
| Drive Motor | 5 kW × 1 |
| Lift Motor | 5 kW × 1 |
| Battery | 48 V / 400 Ah |
| Available Lift Heights | 3,000 / 3,500 / 4,000 / 4,500 / 5,000 / 6,000 / 7,000 / 8,000 / 9,000 mm |
| Corresponding Lowered Mast Heights | 2,300 / 2,550 / 2,200 / 2,450 / 2,550 / 2,850 / 3,200 / 3,500 / 3,800 mm |
Product Overview

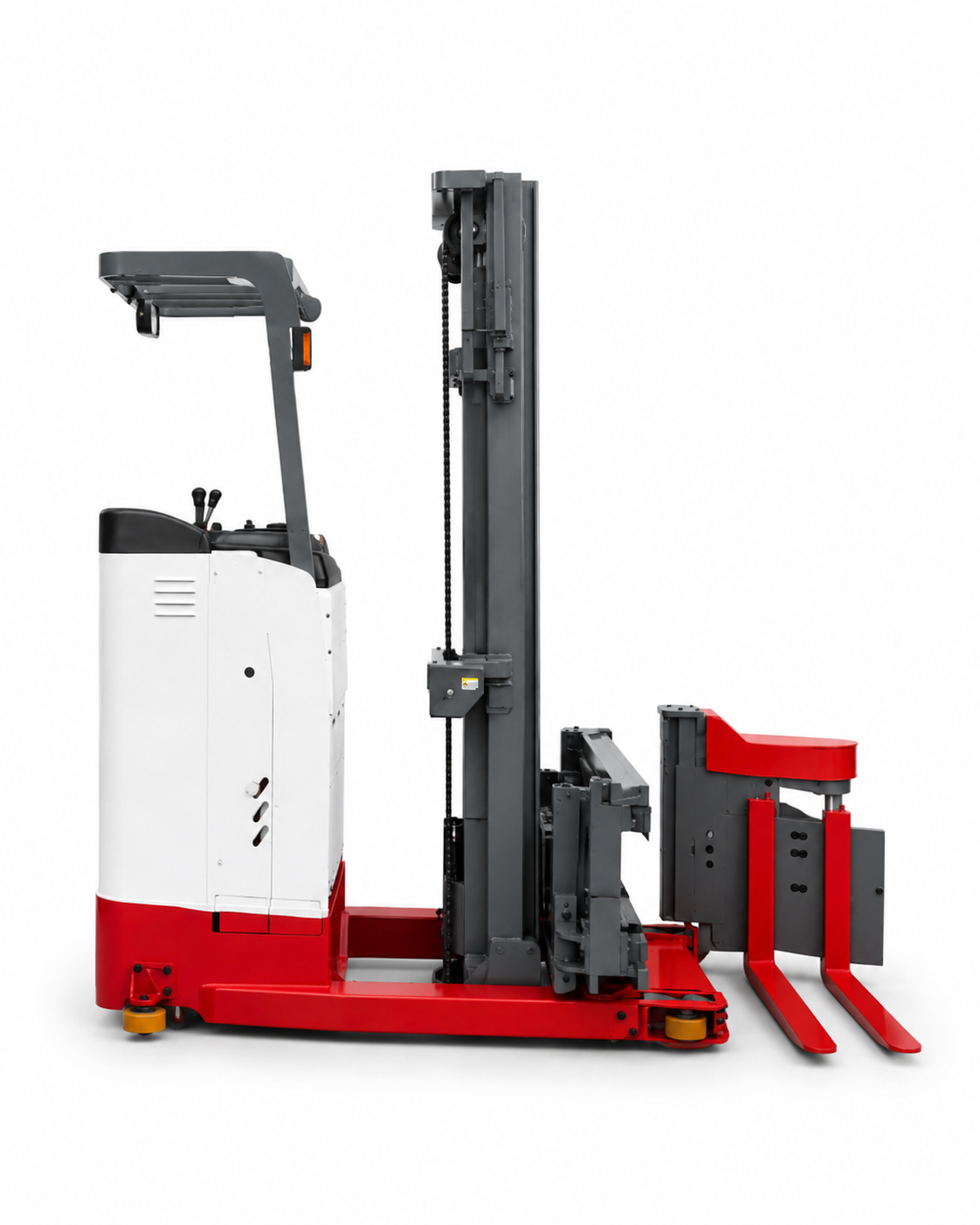

The CQDZM20 is a seated VNA three-way electric forklift designed for high-density warehouse storage and precise pallet handling in very narrow aisles. Its three-way fork system allows pallets to be handled to either side of the aisle without turning the complete truck.
The standard parameter sheet specifies a 2,000 kg rated capacity and a 6,000 mm lift height, with additional lift-height configurations available up to 9,000 mm. Final aisle requirements, residual capacity, mast height and battery configuration should be confirmed according to the customer's warehouse layout and operating conditions.
